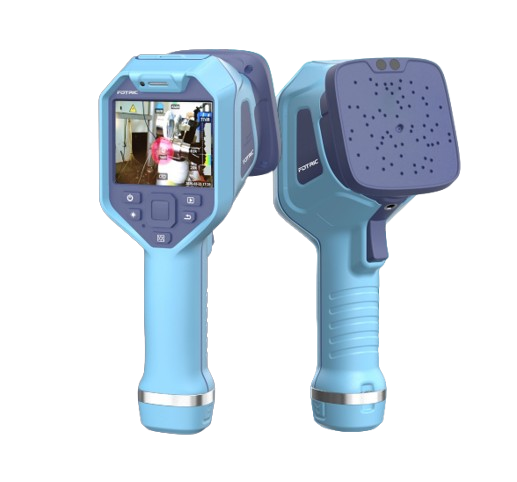

FOTRIC TD2e Kit ກ້ອງຖ່າຍຮູບການຖ່າຍພາບສຽງ (58° × 45°; 2kHz–100kHz)
Microphone Channels: 64 MEMS digital microphones
Acoustic Image Field of View (FOV): 58° × 45°
Sound Pressure Sensitivity:
0.01L/min@0.1MPa, 1.5m, φ30μm orifice;
0.025L/min@0.3MPa, 3.5m, φ30μm orifice;
0.045L/min@0.3MPa, 4.5m, φ40μm orifice
Sound Sampling Rate: 200kHz
Acoustic Refresh Rate: 15Hz
Working Distance: 0.3~60m
Positioning Frequency Range: 2kHz–100kHz
Frequency Range Selection: Supports manual adjustment and peak frequency display
Display Screen: 3.5-inch IPS LCD touchscreen, 640 × 480, explosion-proof cover glass
Digital Camera: 5MP industrial-grade digital camera
Image Format: JPG (acoustic image)
USB Interface: USB Type-C, compliant with USB 3.0/2.0
LED Illumination Lamp: Supports flashlight illumination and flash mode
Battery Type: 3.6V, 5000mAh rechargeable lithium battery, field-replaceable
Battery Operating Time: ≥ 3 hours per battery
Protection Rating: IP54 (GB/T 4208 / IEC 60529)
Drop Resistance: Designed for 2-meter drop resistance
Shock Resistance: 25g (GB/T 2423.5 / IEC 60068-2-27)
Vibration Resistance: 2g (GB/T 2423.10 / IEC 60068-2-6)
Supported Languages: English
Standard Configuration: Main unit ×1; rechargeable lithium battery ×1; charging dock; power adapter; USB Type-C cable ×1; 32GB TF card; quick start guide; packing list
