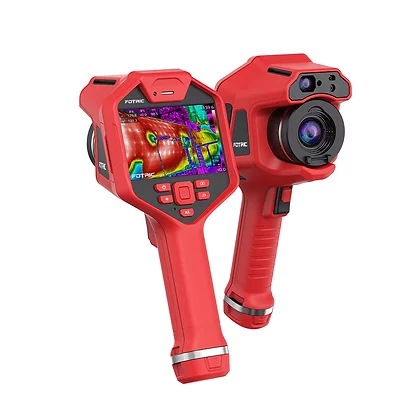

FOTRIC 345M-L12 Advanced AI Thermal Imager (1.36mrad; 320*240; -20℃~650℃)
Infrared Resolution: 320*240
Field of View（FOV）: 25°×19°
Super Resolution (SR): 640*480
Thermal Sensitivity（NETD): ＜0.04℃ at 30℃
Temperature Measurement Range: -20℃ to 650℃ (-4 ℉ to 1203 ℉ )
Accuracy: ± 2℃ or ± 2 %, whichever is greater（ambient temp between 15℃~35℃)
Detector Type: Uncooled infrared focal plane detector
Frame Rate: 30Hz
IFOV with Standard Lens (spatial resolution): 1.36mrad
Digital Zoom: 1-8x,Continuous adjustment of roller
Minimum Focus Distance: 0.1m
Focus Mode: Manual
Laser Measurement: Distance, Length, and Area
Palettes: 16 standard palettes, 16 Inverted palettes
Image File Formats: Standard JPEG with measurement data included
Video File Formats: Full radiation thermal image video in IRS format; standard MPEG4 non radiation video;
Batteries: (field-replaceable, rechargeable): 2 Lithium-ion
Storage Memory: 128GB micro SD card
Battery Life: Over 4 hours per battery
Battery Charging Time: 2.5 hours to 90% full charge
Battery Charging System: Two-bay battery charger with LED display (12V, 3A)
Device Interface: Support USB Type-C 3.0, Micro HDMI and SD card
Size (H x W x L): 312.8mm×123.3mm×139.2mm
Weight (battery included): ＜1.0kg (lens not included)
Tripod: UNC ¼"-20 interface
Standard Configuration:
Infrared thermal imager, 12° Lens, lens cover, batteries, battery charger,
power adapter, USB type-C to USB interface cable,micro HDMI to HDMI interface cable, SD card, SD card reader,
accessory bag (wrist strap, 2 wrist strap holders, 2 M4 * 8 screws, lanyard, Allen wrench),
information bag (packing list,user manual, calibration certificate, certificate of QC, certificate of inspection, warranty card, USB),
portable soft bag, hard portable case.
Optional lens:
Wide-angle：44° ×34° ( ＜ 0.1m), IFOV: 2.4 mrad
Telephoto：12° ×9° ( ＜ 1.0m), IFOV: 0.65 mrad
