Infrared Imaging
IR Resolution: 384 x 288 pixels
Field of View (FOV): 28°H x 21°V
Temperature Range: -20°C- +650°C (-4°F ~ +1202°F)
Minimum Focus Length: 0.15m (Standard Lens)
Spatial Resolution (IFOV): 1.27mRad, 787:1 (Std. Lens)
Thermal Sensitivity (NETD): ≤0.06°C @30°C
Measurement Accuracy: +2°C or ±2% whichever is greater @Environment Temperature 10°C~35°C
Focus: Manual
Spectral Range: 8~14µm
Detector Type: Focal Plane Array (FPA) uncooled microbolometer
Zoom: 8X continuous digital zoom
Image Processing
Palettes: 15 palette options (Gray White, Gray Red, Iron Red, Rainbow, etc.)
Palette Switching: Tap palette icon
Noise Calibration: Automatic noise calibration FFC/Manual noise calibration FFC
Measurement And Analysis
Correction Settings: Emissivity, reflected background temperature, relative humidity, ambient temperature, measuring distance, transmission
Emissivity Adjustment: 0.1-1.0
Regional Emissivity Adjustment: Support, on smartphone and in software
Automatic Capture of High, Low and Average Temperature: Support, on smartphone and in software
Isotherm: Above/Below threshold
ROI Measurement Modes:
- 8 moveable spots
- 8 moveable area boxes (min/max)
- 1 line (min/max)
- Emissivity set for each ROI
Temperature Alarm: User-defined temperature threshold, audible and visual alarm Of above/below temperature threshold
Image Format: Standard JPEG, including raw temperature data, radiometric
Professional Function
Display Mode: Full screen thermal image, customer size/transparency/moveable dual vision fusion picture-in-picture (PIP)
Image Saving Modes: Single thermal image/Thermal & digital mix image
Take fully-radiometric Thermal Video Stream on Smartphone: Support, user-defined frame rate (up to 5 fps) or frame interval, up to 1,000 frames per video stream on smartphone
Take fully-radiometric Thermal Video Stream on PC: Support 1TB in software
Thermal Image Analysis on Smartphone: Support on site analysis
Thermal Video Analysis on Smartphone: Support on site analysis
Image Tagging/Labeling: Thermal image can be automatically labelled by scanning QR code or barcode
Image Annotation: Voice/Text Memos
Power Supply
Battery Type: Rechargeable Lithium-ion
Battery Operating Time: 10+ hours
Charging System: AC Power Adapter
Charging Voltage: 12V DC Charger
Environment
Operating Temperature: -20°C~50°C (-4°F~+122°F)
Storage Temperature: -20°C~50°C (-4°F~+122°F)
Humidity: < 90%RH
Physical Parameters
Enclosure Rating: IP40
FCC Certification: CFR 47 part 15.107/ CFR 47 part 15.109
Tripod Mounting: UNCI/4"-20
Weight: ~615g
Dimensions (LxHxW): 118x145x93.5mm
Standard Configuration

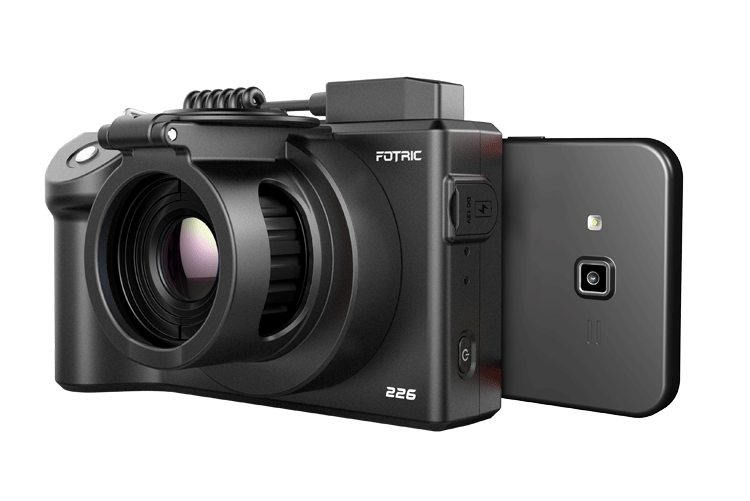

• Thermal imaging camera (built-in battery)
• Standard infrared lens
• Lens protective case
• Power adapter
• USB to micro USB OTG cable (left angle/right angle)
• USB to Micro USB OTG cable
• USB to Micro USB-C OTG cable
• USB to Micro cable
• USB to USB cable
• Hand wrist strap
• Getting started manual (with warranty card)
• Calibration certificate
