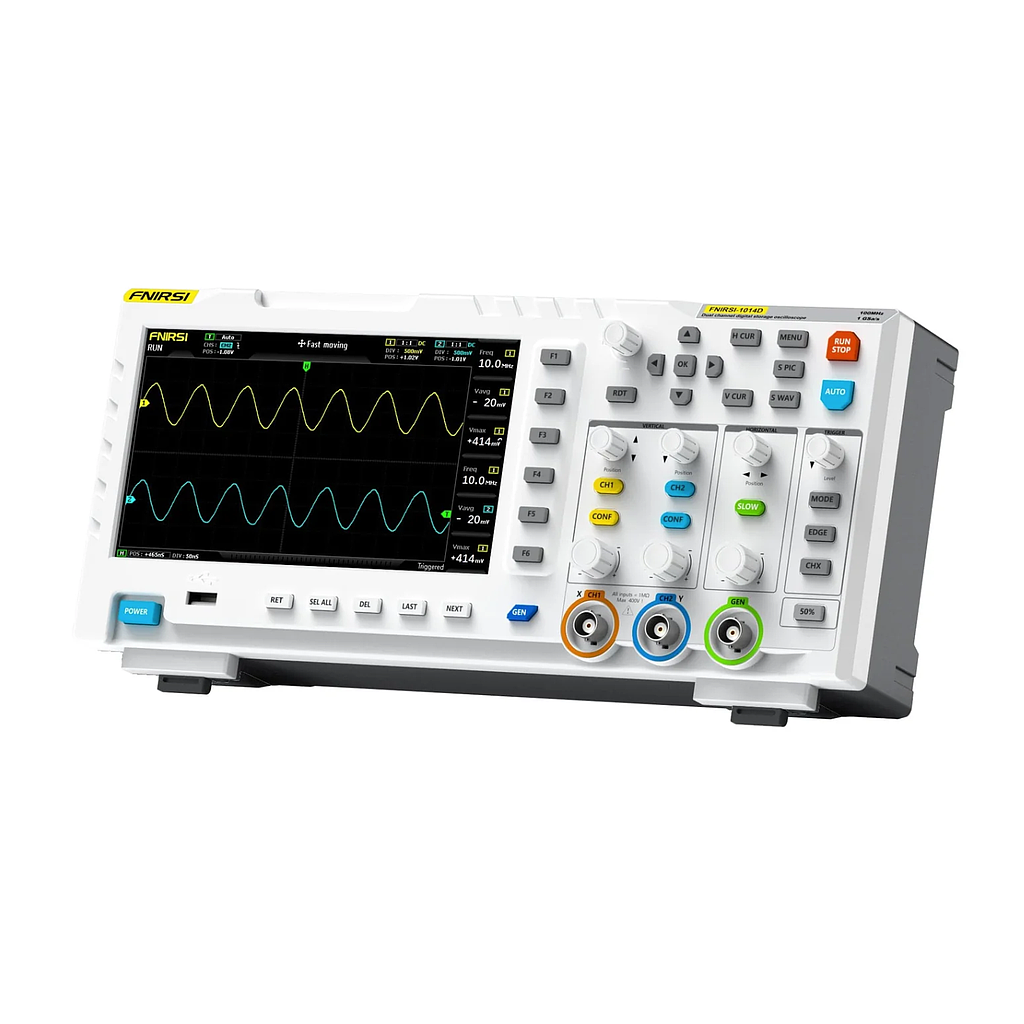

FNIRSI FNIRSI-1014D ອອສຊິໂສກອບດິຈິຕອນ (100MHz*2; 1GSa/s; 2 channels)
Digital Oscilloscope Specification:
Channels: 2
Material: High-quality ABS
Analog Bandwidth: 100MHz * 2
Sampling Rate: 1GSa/s
Vertical Sensitivity: 50mV/div ~ 500V/div
Horizontal Timebase: 5OS/div ~ 10nS/div
Storage Depth: 240Kbit
Input Resistance: 1MΩ
ADC Precision: 8bits
Rise Time: < 3nS
Coupling: AC/DC
Trigger Modes: Auto / Normal / Single
Trigger Edge: Rising edge / Falling edge
External Trigger Voltage: 0~40 V
Maximum Test Voltage: 40V (lX probe), 400V (10X probe)
Waveform Manager: Support (1000 pic + 1000 waveform)
USB Export: Support
Capture Output: Support
Power Supply: 5V 2A/3A/4A
Frequency Precision: ±0.01%
Roll Mode: Support
One-button AUTO: Support
Display: 7-inch 800*480 resolution color TFT LCD
Dimensions: 310mm * 145mm * 70mm
Parameter: 12 kinds in total
Generator: 14 kinds in total
Signal Generator Specification:
Channels: 1
Waveform Type: 14 standard signals (@ 2.5vpp) + 1 customizable signal (Only the Frequency is adjustable)
Capture Output: Supprot
Sine Wave Max Frequency: 10MHz
Other Wave Max Frequency: 2MHz
Customize Signal Max Frequency: 1MHz
Frequency Resolution: 1Hz
