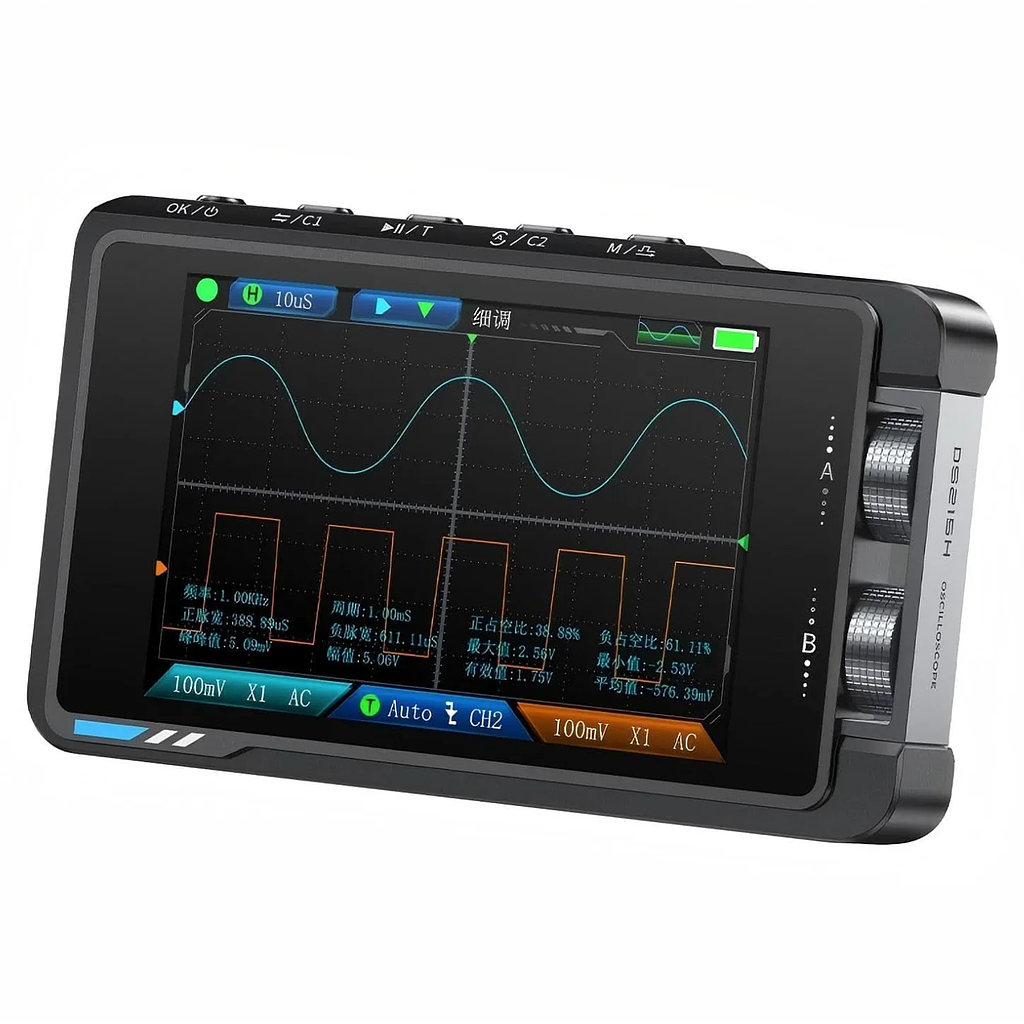

FNIRSI DS215H ອົດສິໂສກຣອບດິຈິຕອນສອງຊ່າງທາງ ພະລັງງານ DDS ເຄື່ອງສ້າງສັນຍານ (2CH; 250MSa/s; 50MHz; multiple waveform)
Basic Parameters:
Display: 3.5 inches IPS high-definition color screen
Backlight: Brightness Adjustable
Power Supply: TYPE-C (5V/1A)
Battery: 1500mAh
Languages: 中文, English, Deutsch, Português, 日本語, Español, 한국인, Pyccкий
Product Size: ≈66x110x19.5mm
Product Weight: ≈138g
Oscilloscope Parameters:
Channel: Dual channel
Bandwidth: 50MHz
Real-time Sampling Rate: 250MSa/s
Storage Space: 14M
Time Base Range: 20ns/div - 20s/div
Vertical Sensitivity: 10mV/div - 10V/div
Vertical Resolution: 8 bits
Input Impedance: 1MΩ
Waveform Display Mode: Scroll
Measurement Data: Cycle, Freq, Vpp, Max, Min, Avg, RMS, Amp, Dduty cycle, Pulse width
Probe Attenuation Factor: 1x/10x
Input Coupling: AC/DC
Triggaer Type: Rising edge/Falling edge
Peak Voltage: ±400V
Trigger Level Range: 8 grids (positive and negative)
Trigger Mode: Auto / Normal / Single
Signal Generator Parameters:
Output Waveform: Supports multiple waveform outputs
Waveform Frequency: 0-50KHz
Square Wave Duty Cycle: 0-100%
Waveform Amplitude: 0.1V-3.0V
