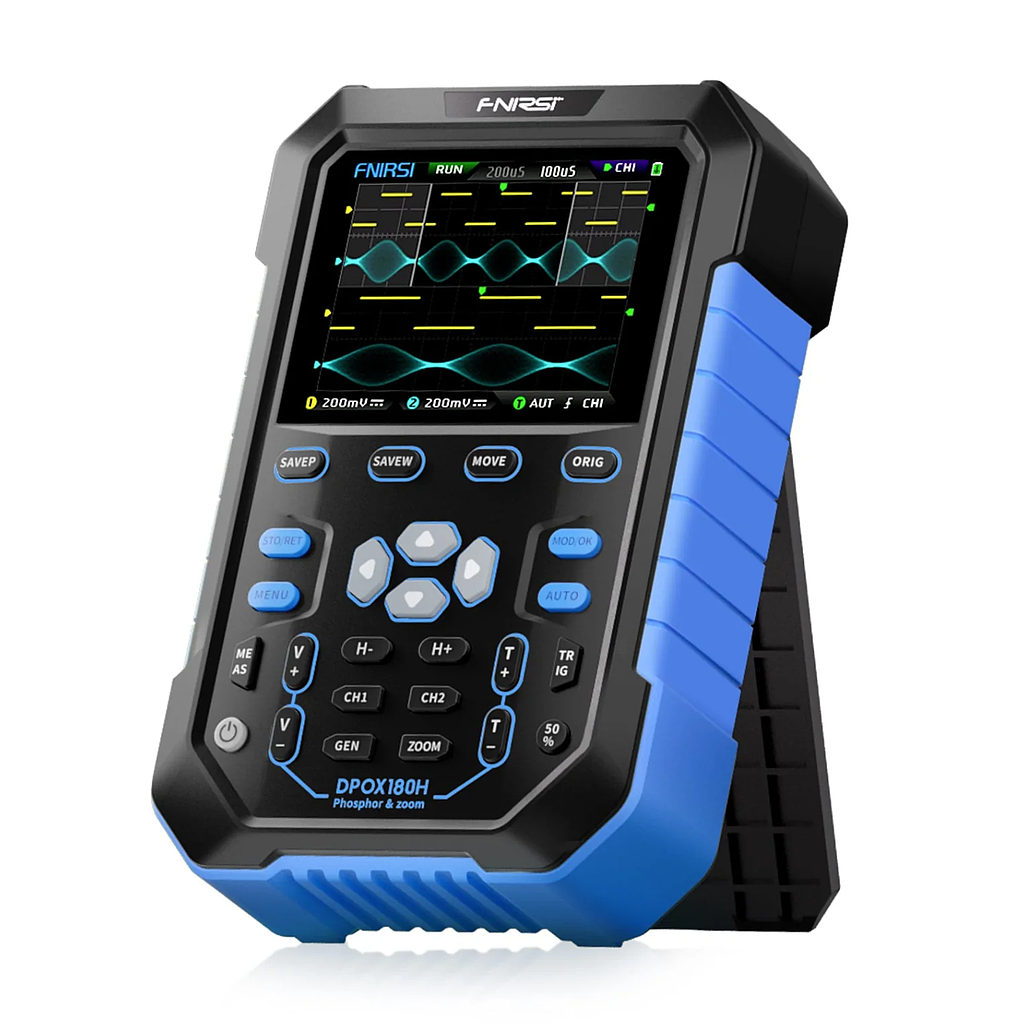

FNIRSI DPOX180H ອົງວັດດິຈິຕອນຟອສໂຟຣສຄອນໂດລຄູ່ (2CH; 180MHz; 500MS/s)
Number of Channels: 2
Analog Bandwidth: 180MHz
Max Waveform Capture Rate: 50000wfm/s
Real Time Sampling Rate: 500MSa/s
Maximum Sampling Rate: 500MSPS
Input Coupling: DC/AC
Rise Time: 2.5nS
Storage Depth: 120Kpts
Water Resistance Level: IPX6
Input Impedance: 1MΩ-18PF
Vertical Sensitivity: 5mV ~ 10V(1X)
Time Base Range: 5nS ~ 50S
DC Accuracy: ±2%
Time Accuracy: ±0.01%
Measurement Range: 40mV ~ 80V(1X)
Digital Phosphor Technology: Support
Color Temperature Display: Support
Zoom Scaling Time Base: Support
20M Hardware Bandwidth Limitation: Support
Adjustable Automatic Bandwidth Limitation: Support
X-Y Mode: Support
FFT: Support
Cursor Measurement: Frequency / Period / Amplitude
Trigger Detection: Digital Trigger
Trigger Mode: Auto / Single / Normal
Trigger Edge: Rising / Falling
Roll Mode: Support
Screenshot Storage: 90
Waveform Storage: 250 Groups
Capture Signal: 500
Parameter Measurement: 12 Kinds
Signal Generator: 14 Standard Function Signals
Auto-adjustment: Support
Waveform Manager: Support
Waveform Output: Support
High-voltage Burnout Protection: Support
Screen Size: 2.8 Inches
Screen Resolution: 320x240 Pixels
Display Technology: IPS Full View
Expansion Interface: USB Transmission Interface
Auto Power-off: 5 minutes ~ 2 hours
Firmware Upgrade: Support
Charging Requirements: 5V 2A
Battery Capacity: 3000mAh
Standby Time: 3.5 Hours at Full Charge
Dimensions: 135x90x40mm
