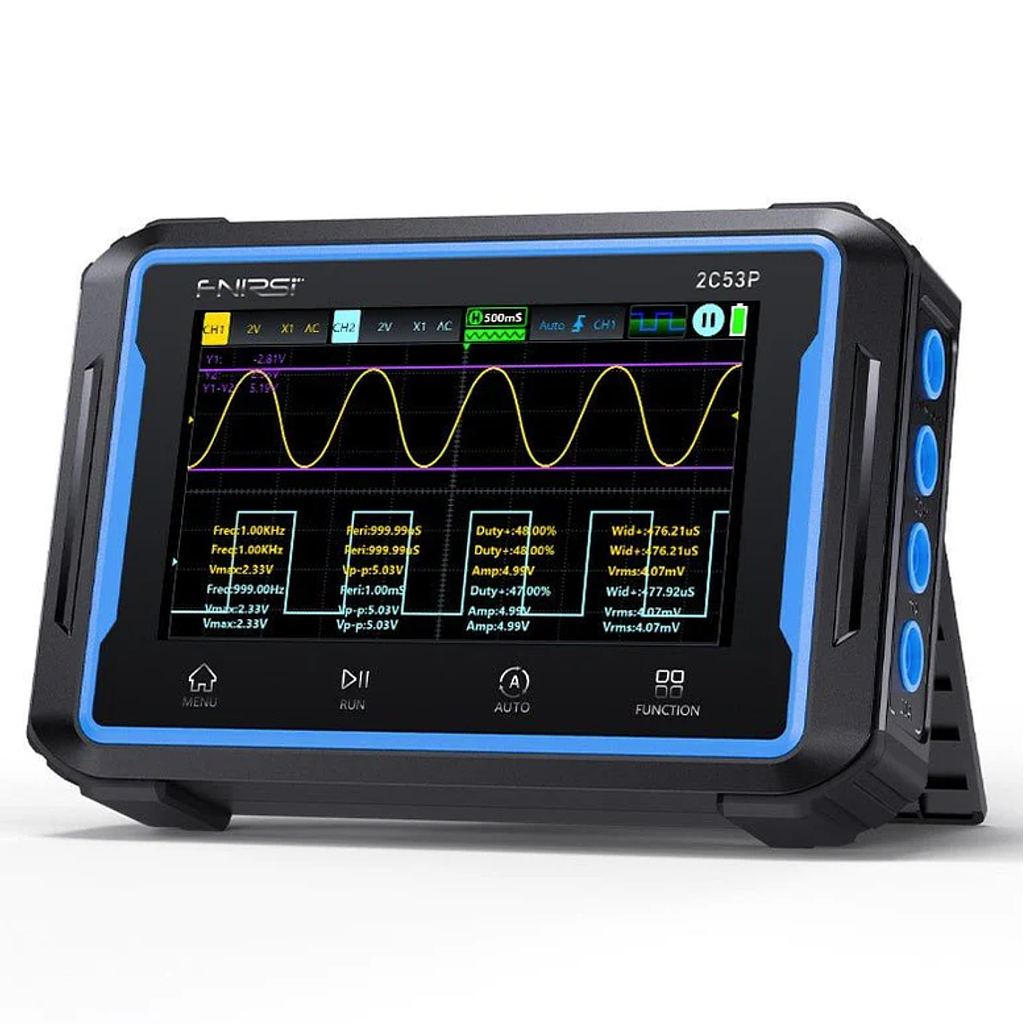

FNIRSI 2C53P ອອສຊິໂສກົບສະແຕັບທີ່ສາມາດກົດໄດ້ສອງຊ່ອງ (50MHz; 250MSa/s; dual channel)
Basic Parameters
Screen Size & Resolution: 4.3 Inch (480*272 pixels)
Screen Material: Surface tempered glass + touch screen made of glass + IPS color screen
Backlight: Backlight brightness can be set
Power Supply: TYPE-C (5V/2A)
Battery: 4000mAh lithium battery
Language: Chinese, English, Pyccкий, にほんご, español, Português, Deutsch, 한국인
Product Size: ≈145x98x35mm
Product Weight: ≈360g
Oscilloscope Parameters
Channel: Dual channel
Bandwidth: 50MHz
Real-time Sample Rate: 250MSa/s
Storage Depth: Up to 64kByte
Input Resistance: 1MΩ
Time Base Range: 10ns/div - 10s/div
Vertical Sensitivity: 10mv/div - 10v/div
Maximum Measured Voltage: ±400V
Vertical Resolution: 8 bits
Probe: 1x/10x
Storage Space: 13M
Bandwidth Limit: Support 20MHz limit
Trigger Mode: AUTO / Normal / Single
Trigger Type: Rising / Falling edge
Trigger Level: 8 div (positive/negative)
Waveform Display Mode: XY / YT / Scroll
Input Coupling: AC/DC
Measured Data: Prd, Freq, Vpp, Vmax, Vmin, Vrms, Vavg, Vamp, Du+, Du-, Wid+, Wid-
Math Alculations: 1+2, 1-2, 1*2, 1/2, -1, -2, |1|, |2|, FFT
Save Waveform Screenshot: Yes
USB Computer Transfer :Yes
Multimeter Parameters
DC Voltage
Range: 1.9999V / 19.999V / 199.99V / 1000.0V
Accuracy: ±(0.5%+3)
AC Voltage
Range: 1.9999V / 19.999V / 199.99V / 760.0V
Accuracy: ±(1%+3)
DC Current
Range: 19.999mA / 199.99mA / 1.9999A / 9.999A
Accuracy: ±(1.2%+3)
AC Current
Range: 19.999mA / 199.99mA / 1.9999A / 9.999A
Accuracy: ±(1.5%+3)
Resistance
① Range: 19.999MΩ / 1.9999MΩ / 199.99KΩ / 19.999KΩ
Accuracy: ±(1.5%+3)
② Range: 1.9999KΩ / 199.99Ω
Accuracy: ±(0.5%+3)
Capacitance
① Range: 999.9μF / 99.99μF / 9.999μF / 999.9nF / 99.99nF / 9.999nF
Accuracy: ±(2.0%+5)
② Range: 9.999mF / 99.99mF
Accuracy: ±(5.0%+20)
Temperature
Range: (-55~1300°C) / (-67~2372°F)
Accuracy: ±(2.5%+5)
Diode: Yes
Continuity Test: Yes
Signal Generator Parameters
Channel: Single channe!
Frequency: 0-10MHz (Sine wave: 10MHz, other waveforms 5MHz)
Amplitude: 0.1-3.0V
Square Wave Duty Cycle: 0-100%
Signal Type: sinusoidal wave, square wave, sawtooth wave, half wave, full wave, positive step wave, negative step wave, DC signal, exponential rise, exponential fall, multi-audio, and sync pulse
Packing list
2C53P Oscilloscope
Alligator clip probe
P6100*2
Product manual
Multimeter probe
Data cable
