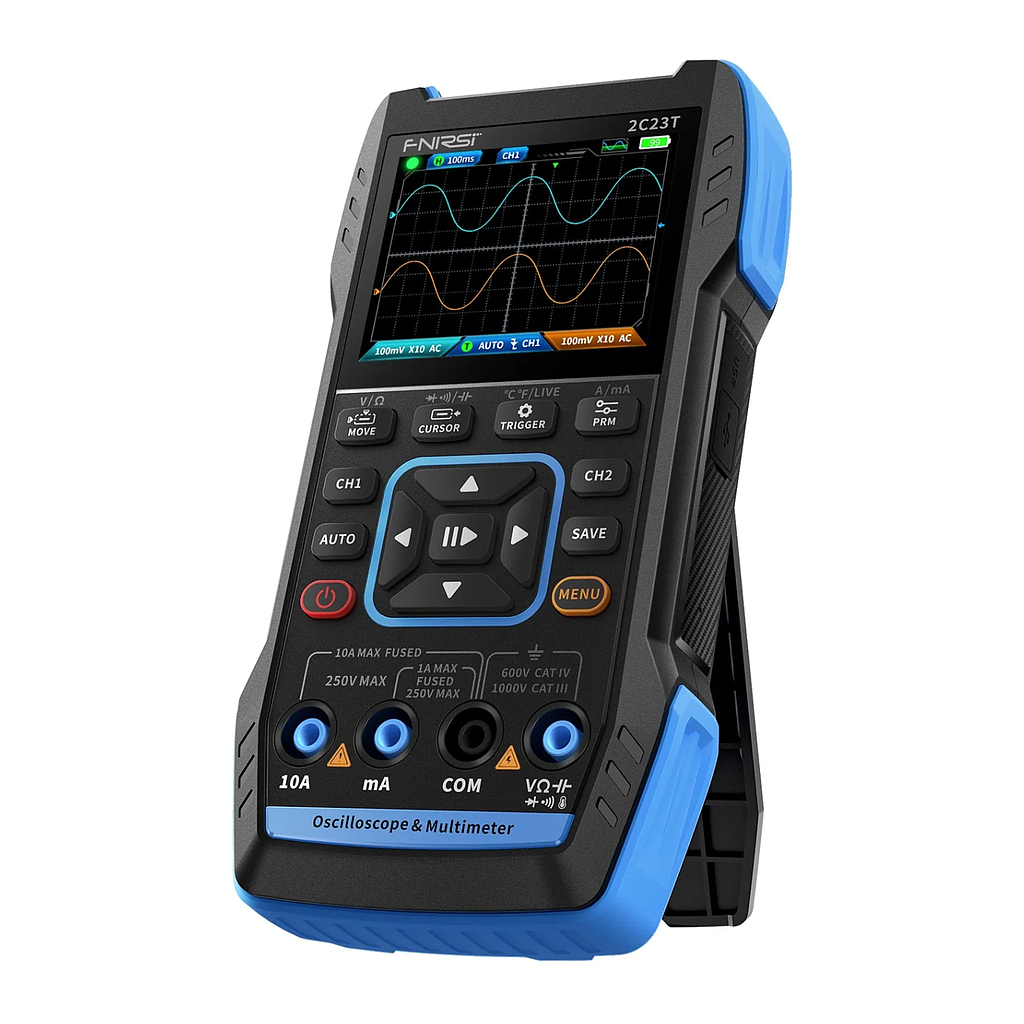

FNIRSI 2C23T ອົດສິໂສໂກພີສ໌ມືຖືສອງຊ່ອງ (2CH, 10MHz, 50MS/s)
Device Parameters
Display Screen: 2.8 inch HD color screen
Resolution Ratio: 320*240
Charging Specifications: TYPE-C (5V/1A)
Battery: 3000mAh lithium battery
Support Functions: Oscilloscope, Signal generator, Multimeter
Language: English
Standby Time: 6 (laboratory theoretical maximum)
Product Volume: 167*89*35mm
Weight: 300g
Oscilloscope Parameter
Channel: Dual channel
Sample Rate: 50M
Analog Bandwidth: 10M(dual channel independent 10M)
Storage Depth: 32kb
Impedance: 1MΩ
Time Base Range: 50ns-10s
Vertical Sensitivity: 20mV/div - 10V/div (X1)
Maximum Measured Voltage: ±400V
Trigger Mode: AUTO / Normal / Single
Trigger Type: Rising edge, Falling edge
Display Mode: YT/Scroll
Coupling Method: AC/DC
Save Waveform Screenshot: Yes
Export Waveform Images: Yes
Multimeter Parameter
DC Voltage
Range: 9.999V / 99.99V / 999.9V
Accuracy: ±(0.5%+3)
AC Voltage
Range: 9.999V / 99.99V / 750.0V
Accuracy: ±(1%+3)
DC Current
Range: 9999μA / 99.99mA / 999.9mA / 9.999A
Accuracy: ±(1.2%+3)
AC Current
Range: 9999μA / 99.99mA / 999.9mA / 9.999A
Accuracy: ±(1.5%+3)
Resistance
① Range: 9.999MΩ / 999.9KΩ / 99.99KΩ / 9.999KΩ / 999.9Ω
Accuracy: ±(0.5%+3)
② Range: 99.99MΩ
Accuracy: ±(1.5%+3)
Capacitance
① Range: 999.9μF / 99.99μF / 9.999μF / 999.9nF / 99.99nF / 9.999nF
Accuracy: ±(2.0%+5)
② Range: 9.99mF / 99.99mF
Accuracy: ±(5.0%+20)
Temperature
Range: (-55~1300°C) / (-67~2372°F)
Accuracy: ±(2.5%+5)
Diode: Yes
Continuity Test: Yes
Live Line Detection: Yes
Signal Generator Parameter
Channel: Single channel
Frequency: 1Hz-2MHz
Amplitude: 0.1-3.3V
Output Waveform: Sine wave, square wave, triangular wave, full wave, half wave, noise wave, DC Output
Duty Cycle: 0-100%
