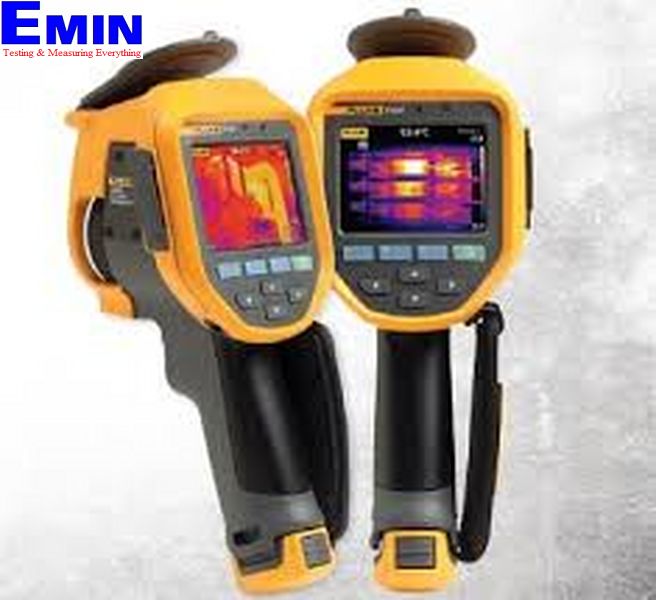

Manufaturer: Fluke
Model: Ti400
|
Detailed Specifications |
|
|
Temperature |
|
|
Temperature measurement range (not calibrated below -10 °C) |
-20 °C to +1200 °C |
|
Temperature measurement accuracy |
± 2 °C or 2 % (at 25 °C nominal, whichever is greater) |
|
On-screen emissivity correction |
Yes (by number and table) |
|
On-screen reflected background temperature compensation |
Yes |
|
On-screen transmission correction |
Yes |
|
Imaging Performance |
|
|
Image capture frequency |
9 Hz refresh rate or 60 Hz refresh rate depending upon model variation |
|
Detector type |
Focal Plane Array, uncooled microbolometer, 320 x 240 pixels |
|
Thermal sensitivity (NETD) |
≤ 0.05 °C at 30 °C target temp (50 mK) |
|
Total pixels |
76,800 |
|
Infrared spectral band |
7.5 μm to 14 μm (long wave) |
|
Visual (visible light) camera |
Industrial performance 5.0 megapixel |
|
Standard Infrared Lens Type |
|
|
Field of view |
24 ° x 17 ° |
|
Spatial resolution (IFOV) |
1.31 mRad |
|
Minimum focus distance |
15 cm (approx. 6 in) |
|
Optional Telephoto Infrared Lens Type, Available Soon |
|
|
Field of view |
12 ° x 9 ° |
|
Spatial resolution (IFOV) |
0.65 mRad |
|
Minimum focus distance |
45 cm (approx. 18 in) |
|
Optional Wide-Angle Infrared Lens Type, Available Soon |
|
|
Field of view |
46 ° x 34 ° |
|
Spatial resolution (IFOV) |
2.62 mRad |
|
Minimum focus distance |
15 cm (approx. 6 in) |
|
Focus Mechanism |
|
|
LaserSharp™ auto focus system |
Yes |
|
Advanced manual focus |
Yes |
|
Image Presentation |
|
|
Palettes |
|
|
Standard |
Ironbow, Blue-Red, High Contrast, Amber, Amber Inverted, Hot Metal, Grayscale, Grayscale Inverted |
|
Ultra Contrast™ |
Ironbow Ultra, Blue-Red Ultra, High Contrast Ultra, Amber Ultra, Amber Inverted Ultra, Hot Metal Ultra, Grayscale Ultra, Grayscale Inverted Ultra |
|
Level and span |
Smooth auto-scaling and manual scaling of level and span |
|
Fast auto toggle between manual and auto modes |
Yes |
|
Fast auto-rescale in manual mode |
Yes |
|
Minimum span (in manual mode) |
2.0 °C (3.6 °F) |
|
Minimum span (in auto mode) |
3.0 °C (5.4 °F) |
|
IR-Fusion® Information |
|
|
Picture-in-Picture (PIP) |
Yes |
|
Full screen infrared |
Yes |
|
AutoBlend™ mode |
Yes |
|
Color alarms (temperature alarms) |
High-temperature , low-temperature, and isotherm (user-selectable) |
|
Image Capture and Data Storage |
|
|
Image capture, review, save mechanism |
One-handed image capture, review, and save capability |
|
Storage medium |
