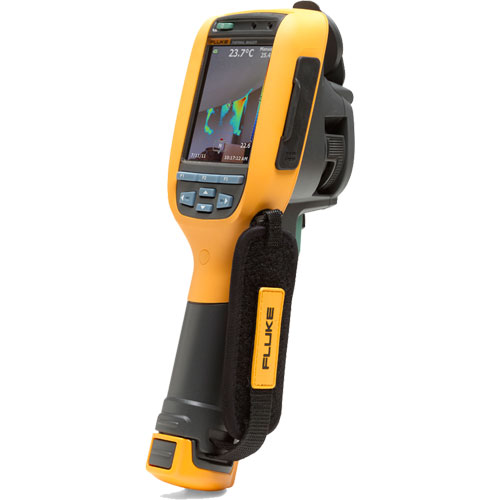

Manufaturer: Fluke
Model: Ti125
|
Detailed Specifications |
|
|
IR resolution (FPA size) |
160 x 120 FPA Uncooled Microbolometer |
|
Spectral band |
7.5 μm to 14 μm (long wave) |
|
Capture or refresh rate |
9 Hz or 30 Hz versions |
|
NETD (Thermal sensitivity) |
≤ 0.10 °C at 30 °C target temp (100 mK) 0.10 °C at 30 °C target temp (100 mK) |
|
FOV (Field of view) |
22.5 °H x 31 °V |
|
IFOV (Spatial resolution) |
3.39 mRad |
|
Temperature measurement range (not calibrated below -10 °C) |
-20 °C to +350 °C (-4 °F to +662 °F) |
|
Temperature measurement accuracy |
± 2 °C or 2 % (at 25 °C nominal, whichever is greater) |
|
Focus mechanism |
IR-OptiFlex™ focus system |
|
IR-Fusion® technology |
PIP, FULL IR, FULL VISIBLE, AutoBlend™ |
|
Color alarms |
High temperature, low temperature, isotherm |
|
Standard palettes |
Blue-Red, Grayscale, Inverted Grayscale, High-contrast, Hot Metal, Ironbow, Amber, Inverted Amber |
|
Ultra Contrast™ palettes |
Blue-Red, Grayscale, Inverted Grayscale, High-contrast, Hot Metal, Ironbow, Amber, Inverted Amber |
|
Hot/cold markers |
Yes |
|
User definable spot markers |
Three on camera and in SmartView® |
|
Centerbox (MIN/AVG/MAX) |
Yes |
|
Level and span control |
Manual and auto |
|
Minimum span in auto mode |
5 °C |
|
Minimum span in manual mode |
2.5 °C |
|
Minimum IR focus distance |
15.25 cm (6 in) |
|
Weight |
0.726 kg (1.6 lb) |
|
Size |
28.4 x 8.6 x 13.5 cm (11.2 x 3.4 x 5.3 in) |
|
LCD display |
3.5 inch diagonal (portrait format) |
|
Visible camera |
2 megapixel industrial-grade |
|
Minimum automatic parallax correction |
~18-22 inches |
|
IR-PhotoNotes™ annotation system |
Yes (3 images) |
|
Laser pointer |
Yes |
|
Torch |
Yes |
|
Electronic (cardinal) compass |
Yes |
|
Emissivity correction |
Yes |
|
Transmission correction |
Yes |
|
Background (reflected) compensation |
Yes |
|
Voice annotation (audio) |
Yes (60 seconds) per image |
|
Multi-mode video output |
Streaming USB video output (infrared, visible and IR-Fusion modes) |
|
Multi-mode video recording (standard avi w/ mpeg encoding) |
Yes (AVI with MPEG encoding, up to 5 minutes) |
|
Multi-mode video recording (radiometric .Is3) |
Yes, radiometric .is3 for approx. 2.5 to 5 minutes depending upon thermal scene |
|
Memory review |
thumbnail review |
|
Battery (field-replaceable, rechargeable) |
Two |
|
Battery life |
4+ hours (each)* |
|
External battery charging base |
Yes |
|
Charging power supply |
Yes |
|
Drop test |
2 meter (6.5 feet) |
|
Ingress protection (IP) rating (IEC 60529) |
IP 54 |
|
Recommended Calibration cycle |
Two-years |
|
Multifunction card reader |
Included |
|
Memory storage |
2 GB SD memory card |
|
Direct download capability |
mini USB download direct to PC |
|
Operating temperature range |
-10 °C to +50 °C (14 °F to 122 °F) |
|
Storage temperature range |
-20 °C to +50 °C (-4 °F to 122 °F) |
|
Operating humidity |
Operating and storage 10 % to 95 %, Non-condensing |
|
Vibration and shock |
2G, IEC 68-2-26 and 25G, IEC 68-2-29 |
|
Safety standards |
IEC 61010-1: Cat None, Pollution degree 2 |
|
C Tick |
