FLUKE PLS HV2G SYS Manual Slope Green Rotary Laser ລະບົບ

Laser: Class II green

Laser axis: Horizontal and Vertical

Accuracy: ≤ 2.2 mm @ 30 m (≤ 3/32 in @ 100 ft)

Auto-leveling range: ± 5-degrees

Manual slope range: ± 5-degrees

Working range:

Without XLD laser detector: ≤ 30 m (100 ft)

With XLD laser detector: ≤ 300 m (1000 ft)

Weight: 3 kg (6.6 lb)

Drop test: 1 m

IP rating: IP67

Operating temperature: -20 °C to 50 °C (-4 °F to 122 °F)

Battery: 4 x D Alkaline or NiMH rechargeable

Battery life: > 60 hours

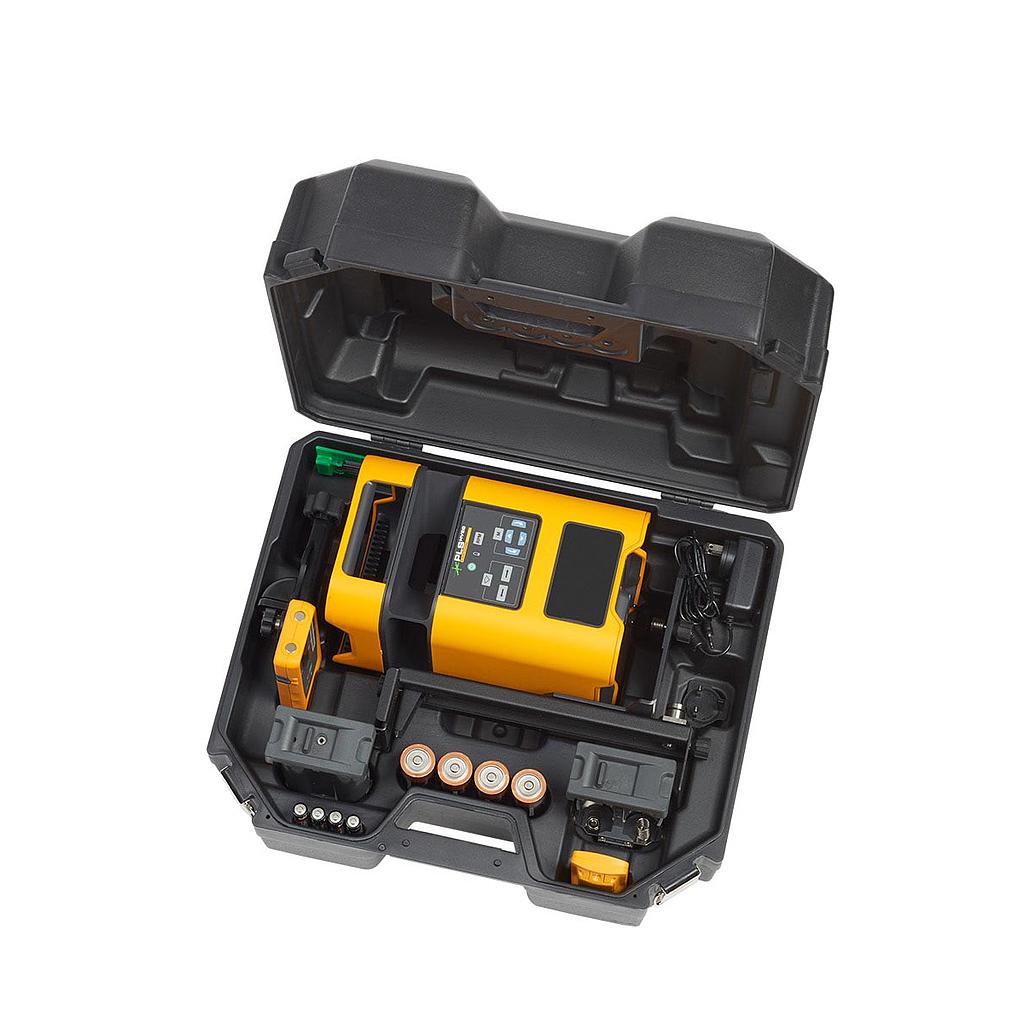

Includes:

- PLS HV2G Rotary Laser Level

- PLS BP10 Alkaline Battery Tray with 4x D batteries

- PLS RBP10 NiMH Rechargeable Battery Tray with BC20 Universal Charging Cord

- PLS RC2 Remote Control

- PLS XLD Rotary Laser Detector

- PLS XLD Clamp

- PLS WCB10 Rotary Wall and Ceiling Mount

- PLS GRT4 Green Reflective Target

- Safety Sheet and Quick Reference Guide
