Battery resistance/Strap resistance
Range/ Resolution/Accuracy
3 mΩ /0.001 mΩ/ 1% +68
30 mΩ/ 0.01 mΩ / 0.8%+12
300 mΩ/ 0.1 mΩ/ 0.8 % + 6
3000 mΩ/ 1 mΩ/ 0.8 % + 6
Vdc
Range/ Resolution/Accuracy
6 V/ 0.001 V/ 0.09 % + 5
60 V/ 0.01 V/ 0.09 % + 5
600 V/ 0.1 V/ 0.09 % + 5
1000 V/ 1 V/ 0.09 % + 5
Vac (45 Hz to 500 Hz with 800 Hz filter)
Range/ Resolution/Accuracy: 600 V/ 0.1 V/ 2 % + 10
Frequency (displayed with Vac and Aac)
Range/ Resolution/Accuracy: 500 Hz/ 0.1 Hz/ 0.5 % + 8
AC voltage ripple (20 KHz Max)
Range/ Resolution/Accuracy
600 mV/ 0.1 mV/ 3 % + 20
6000 mV/ 1 mV/ 3 % + 10
Adc/Aac (with accessory Fluke i410)
Range/ Resolution/Accuracy: 400 A/ 1 A/ 3.5 % + 2
Temperature:
Range/ Resolution/Accuracy: 0 °C to 60 °C/ 1 °C /2 °C (4 °F)
Meter mode: 999 records for each measurement position with time stamp
Sequence mode: Up to 100 profiles and 100 profile templates (Each profile stores up to 450 batteries) with time stamp
Measurement modes
Resistance (mΩ): Yes
Battery voltage: Yes
Voltage dcL: Yes
Voltage ac and frequency (Hz): Yes
Ripple volt: Yes
Temperature of negative battery post(Using BTL21 straight probes): Yes
DC and ac current (and frequency): Yes
DMM mode: Yes
Sequence mode: Yes
Discharge measurement mode: Yes
Automatic measurement save: Yes
Wireless communication: Yes
Memory view: Yes
Size (HxWxD): 22 cm x 10.3 cm x 5.8 cm (9 in x 4 in x 2 in)
Weight: 850 g (1.9 lb)
Screen dimensions: 7.7 cm x 5.6 cm (3 in x 2.2 in)
Interface: USB mini
Environment specifications
Operating temperature: 0 °C to 40 °C
Storage temperature: -20 °C to 50 °C
Lithium-ion: battery chargingtemperature: 0 °C to 40 °C
Operating humidity
Non-condensing (10 °C)
<=80 % RH (at 10 °C to 30 °C)
<=75 % RH (at 30 °C to 40 °C)
Operating altitude:Sea level to 2000 meters
Storage altitude: Sea level to 12,000 meters
IP rating: IP40
Radio: FCC Class A
Vibration requirements: MIL-PRF-28800F: Class 2
Drop test requirements: 1 meter
Temperature coefficients: Add 0.1 x specified accuracy for each degree C above 28 °C or below 18 °C
Safety compliance: 600 V CAT III
EMC: IEC 61326
ROHS: China, Europe
Protection Class 2: Pollution Degree II
Battery compliance:
UN38.3
UL2054
IEC62133
2G per IEC68-2-26, 25G, and 29
Datasheet
Manual
Fluke Battery Analyzers allow you to quickly and easily define upper and lower measurement thresholds or tolerance ranges. During the testing process, measured values are automatically compared to the predefined threshold levels producing a PASS, FAIL or WARN indication after each measurement. A maximum of 10 sets of thresholds can be stored and threshold indications are determined based on the following criterion:
| Voltage | Resistance | |||
| > Voltage Lower | < Voltage Lower | < Reference | > Reference and Reference x (1+Warning %) | > Reference x (1+Fail) |
| Pass | Fail | Pass | Warning | Fail |
Fluke Battery Management Software Easily allows you to quickly and easily import data from the battery analyzer to a PC. The measurement data and battery profile information is stored and archived with the Management Software and can be used compare results, switch results between conductance and resistance readings and perform trend analysis. All measurement data, battery profile and analysis information can be used to easily generate reports.

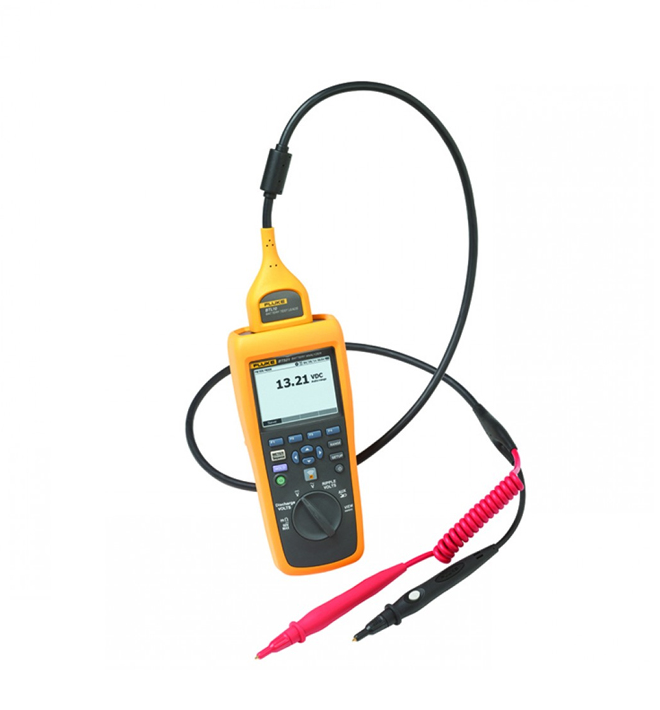

The BT521 offers wireless communication for data download and remote display while measuring via the dedicated Fluke Battery Analyzer mobile app (note: the Fluke BT521 is not currently Fluke Connect compatible). Using the Fluke Battery Analyze mobile app you can:
* BTL20 not included with the Fluke BT-521
* Not currently compatible with Fluke Connect® app
| Range | Resolution | Accuracy | BT510 | BT520 | BT520ANG | BT521 | BT521ANG | |
| Battery Resistance / Strap Resistance1 | 3 mΩ | 0.001 mΩ | 1% + 8 | ● | ● | ● | ||
| 1% +68 | ● | ● | ||||||
| 30 mΩ | 0.01 mΩ | 0.8% + 6 | ● | ● | ● | |||
| 0.8%+12 | ● | ● | ||||||
| 300 mΩ | 0.1 mΩ | 0.8% + 6 | ● | ● | ● | ● | ● | |
| 3000 mΩ | 1 mΩ | 0.8% + 6 | ● | ● | ● | ● | ● | |
| VDC | 6 V | 0.001 V | 0.09% + 5 | ● | ● | ● | ● | ● |
| 60 V | 0.01 V | 0.09% + 5 | ● | ● | ● | ● | ● | |
| 600 V | 0.1 V | 0.09% + 5 | ● | ● | ● | ● | ● | |
| 1000 V | 1 V | 0.09% + 5 | ● | ● | ||||
| VAC (45 Hz to 500 Hz with 800 Hz filter) | 600 V | 0.1 V | 2% + 10 | ● | ● | ● | ● | ● |
| Frequency (displayed with VAC and AAC)2 | 500 Hz | 0.1 Hz | 0.5% + 8 | ● | ● | ● | ● | ● |
| AC voltage ripple (20 KHz Max) | 600 mV | 0.1 mV | 3% + 20 | ● | ● | ● | ● | ● |
| 6000 mV | 1 mV | 3% + 10 | ● | ● | ● | ● | ● | |
| ADC/AAC (with accessory Fluke i410) | 400 A | 1 A | 3.5% + 2 | ● | ● | |||
| Temperature | 0°C to 60°C | 1°C | 2°C (4°F) | ● | ● | |||
| Meter mode | 999 records for each measurement position with time stamp | |||||||
| Sequence mode | Up to 100 profiles and 100 profile templates (Each profile stores up to 450 batteries) with time stamp | |||||||
| 1. The measurement is based on AC injection method. The injected source signal is < 100 mA, 1 kHz. 2. Trigger level VAC: 10 mV, AAC: 10 A | ||||||||
| Measurement Modes | BT510 | BT520 | BT521 | |||||
| Resistance (mΩ) | ● | ● | ● | |||||
| Battery voltage | ● | ● | ● | |||||
| Voltage DC | ● | ● | ● | |||||
| Voltage AC and frequency (Hz) | ● | ● | ● | |||||
| Ripple volt | ● | ● | ● | |||||
| Temperature of negative battery post (using BTL21 straight probes) | ● | |||||||
| DC and AC current (and frequency) | ● | |||||||
| DMM mode | ● | ● | ● | |||||
| Sequence mode | ● | ● | ● | |||||
| Discharge measurement mode | ● | ● | ● | |||||
| Automatic measurement save | ● | ● | ● | |||||
| Wireless communication | ● | |||||||
| Memory view | ● | ● | ● | |||||
| General Specifications - Battery Analyzer | ||||||||
| Size (H x W x D) | 22 x 10.3 x 5.8 cm (9 x 4 x 2 in) | |||||||
| Weight | 850 g (1.9 lb) | |||||||
| Screen dimensions | 7.7 x 5.6 cm (3 x 2.2 in) | |||||||
| Interface | USB mini | |||||||
