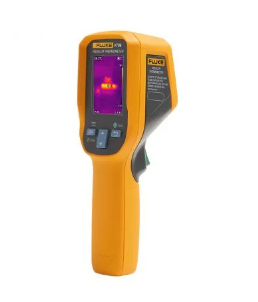

FLUKE FLUKE-VT08/APC ເຄື່ອງວັດແທກອຸນຫະພູມແບບ Visual IR (120×90 pixcel, 400 °C, 7.6 mrad)
Infrared resolution: 120×90
IR frequency band: 7.5~14 μm(long wave)
Frame rate: 9 Hz
Thermal sensitivity/NETD: <60 mk
Field of view (H x V): 50° x 37.5°
Spatial resolution: 7.6 mrad
Focus system: Focus free
Minimum focusing distance: 0.5 m (19.7 in)
Visible light
Visible resolution: 320×240
Visible FOV (H x V): 53° x 41°
Image display and storage
Image mode: Thermal image, Visible image, PIP
Palettes: Ironbow, Blue-Red, High-Contrast, Amber, Hot Metal, Grayscale
Internal storage: >28GB (>100000 images)
*14GB Internal Storage for VT06/VT08 manufactured before 6 Aug 2022.
File format: JPEG compression format (.jpg)
PIP mode: Yes
Temperature measurement
Temperature range: -20 °C to 400 °C [-4 °F to 752 °F] (not specified for below -10 °C)
Temperature accuracy: ±2°C or 2% @ 23°C±5°C, whichever is greater
Emissivity: Adjustable
Background temperature compensation: Yes
Auto high-/low-temperature capture: Yes
Center point temperature: Yes
Alarm: Maximum/minimum temperature alarm in full screen
Environmental specifications
Operating temperature: -10 °C to 50 °C
Storage temperature: -40 °C to 70 °C
Operating altitude: 2000 m (1.24 mi)
Storage altitude: 12 000 m (7.5 mi)
Display: 6.096 cm (2.4-inch) LCD
Language: English
Size: 20.4 cm x 6.6 cm x 7.6 cm
Weight: 0.36 kg
Relative humidity: ≤90%, non-condensing
