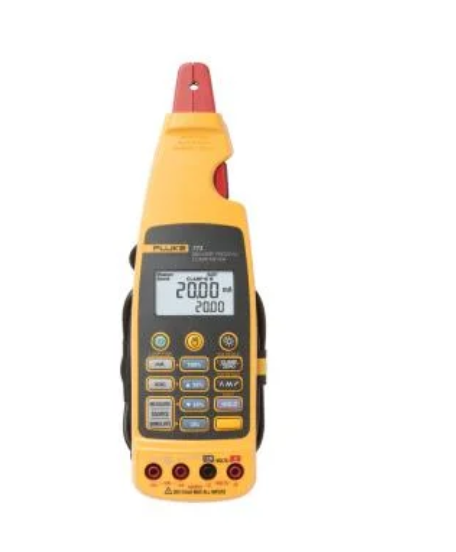

Name: FLUKE FLUKE-773 Clamp Meter (measure 0-100mA/0-30.00 V , source 0- 24.00 mA/ 0-10.00 V DC)
Brand: FLUKE
Availability: OutOfStock

ຕິດຕາມຂ່າວສານ ແລະ ຂໍ້ສະເໜີ

ຮັບສ່ວນຫຼຸດພິເສດຕາມປະລິມານ, ອັບເດດລາຄາຂາຍສົ່ງ ແລະ ການແຈ້ງເຕືອນສິນຄ້າໃໝ່ສົ່ງກົງເຖິງອິນບັອກຂອງທ່ານ.

ໂດຍການສະໝັກສະມາຊິກ, ທ່ານຍອມຮັບ ເງື່ອນໄຂການໃຫ້ບໍລິການ ແລະ ນະໂຍບາຍຄວາມເປັນສ່ວນຕົວ ຂອງພວກເຮົາ.

ການຊ່ວຍເຫຼືໍາດ່ວນ

ເຂົ້າເຖິງຜູ້ຊ່ຽວຊານທີ່ໄດ້ຮັບການຢັ້ງຢືນຂອງພວກເຮົາໂດຍກົງ

FLUKE FLUKE-773 Clamp Meter (measure 0-100mA/0-30.00 V , source 0- 24.00 mA/ 0-10.00 V DC)

ຜູ້ຜະລິດFLUKE

ModelFLUKE-773

P/N6036488

ຕົ້ນກຳເນີດChina

ຕິດຕໍ່

ຈຳນວນ

ການຊຳລະເງິນທີ່ປອດໄພ

ການຮັບປະກັນຄຸນນະພາບ

ປ່ຽນ ແລະ ສົ່ງຄືນງ່າຍ

ມີບໍລິການຈັດສົ່ງ

The 773 mA Clamp Meter features:

Best in class 0.2 % accuracy

0.01 mA resolution and sensitivity

Measure 4 to 20 mA signals without ”breaking the loop”

Measure mA signals for PLC and control system analog I/O

Dual backlit display with both mA measurement and percent of 4 to 20 mA span

Measurement Spotlight illuminates hard to see wires in dark enclosures

Detachable clamp with extension cable for measurements in tight locations

Measure 10 to 50 mA signals in older control systems using the 99.9 mA range

Automatically change the 4 to 20 mA output for remote testing

Power saving features, auto-off, backlight timeout extend battery life

Hold function captures and displays changing measurements

Measure 4 to 20 mA signals with in-circuit measurement

Simultaneous mA in-circuit measurement with 24V loop power for powering and testing transmitters

Source 4 to 20 mA signals for testing control system I/O or I/Ps

mA output linear ramp or 25% step output

Automatically change the 4 to 20 mA output for remote testing

DC voltage measurement to verify 24V power supplies or voltage I/O signals

Source DC voltage to test input devices that accept a 1-5V or 0 to 10V signals

Scaled mA output provides a continuous mA signal that corresponds to the 4 to 20 mA signal measured by the mA clamp

Enables milliamp signal logging to a separate logging device without breaking the loop

Output mA signal enables a logging DMM or other device to record the 4- to 20 mA signal without breaking the loop

mA in/out: simultaneously measure the mA signal with the clamp and source a mA signal

Apply a mA input signal to a device and measure its’ 4-20 mA output on devices such as valves or mA isolators

Voltage output linear ramp or 25% step output

Automatically change the voltage output for remote testing

What’s the difference between the 77X models?

Fluke-771

Fluke-772

Fluke-773

Non-contact mA loop measurement

Integrated mA loop troubleshooting

Advanced process troubleshooting

mA measure, jaw

mA measure, in circuit

Loop power

mA source

DCV measure

DCV source

mA scaled output

mA in / out

Environmental Specifications

Diameter of measurable conductor

0.177” or 4.5 mm max

Operating temperature

-10 to 50 ºC

Storage Temperature

-25 to 60ºC

Operating Humidity

< 90% @ <30 c="" 75="" 30="" to="" 55="" c="" td="">

Operating Altitude

0 to 2000 m

IP Rating

IP 40

Size

44 x 70 x 246 mm (2 7/8 x 5 ¾ x 11 5/8 in)

Weight

410 g, (14.4 oz)

Vibration

Random 2 g, 5 to 500 Hz

Shock

1 meter drop test (except the jaw)

EMI/RFI

Meets EN61326-1
Note: For current measurement w/ JAW, add 1mA to
specification for EMC field strengths of 1V/m up to 3V/m.

Temperature Coefficient

0.01% ºC
(<18ºC or > 28ºC)

Power, battery life

(4) AA 1.5 V Alkaline, IEC LR6, 12 hours in mA source into 500 ohms

Warranty

Three years for electronics
one year for cable and clamp assembly

Functional Specifications

mA measurement
(Measured by clamp) 771/772/773

Resolution and Range:          0 to 20.99 mA
Accuracy:                             0.2%+2 counts
Resolution and Range:          21.0 mA to 100.0 mA
Accuracy:                             1% + 5 counts

mA measurement
(Measured in series with test jacks) 772/773

Resolution and Range: 0 to 24.00 mA
Accuracy: 0.2% + 2counts

mA source (Maximum mA Drive:
24 mA into 1,000 ohms)

Resolution and Range: 0 to 24.00 mA
Accuracy: 0.2% + 2counts

mA simulate
(Maximum voltage 50 V dc)

Resolution and Range: 0 to 24.00 mA
Accuracy: 0.2% + 2counts

Voltage source (2 mA maximum drive current)

Resolution and Range: 0 to 10.00 V dc
Accuracy: 0.2% + 2counts

Voltatge Mesaure

Resolution and Range: 0 to 30.00 V dc
Accuracy: 0.2% + 2counts
