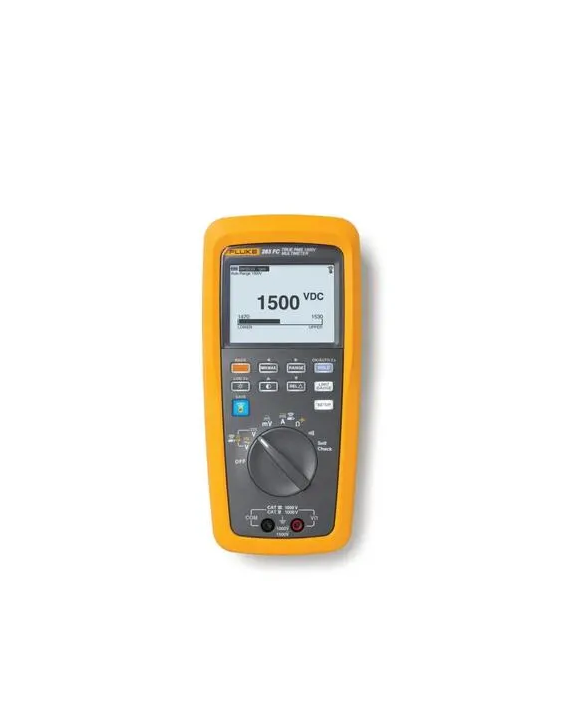

FLUKE FLUKE-283FC/APAC ເຄື່ອງວັດດິຈິຕອລ (1500 V, 600.0 mV, True-RMS)
AC Voltage
Range / Resolution / Accuracy
6.000 V / 0.001 V / ±(1.0% + 3) (45 Hz to 500 Hz)
60.00 V / 0.01 V / ±(1.0% + 3) (45 Hz to 500 Hz)
600.0 V / 0.1 V / ±(2.0% + 3) (500 Hz to 1 kHz)
1000 V / 1 V / ±(2.0% + 3) (500 Hz to 1 kHz)
DC Voltage
Range / Resolution / Accuracy
6.000 V / 0.001 V / ±(0.09% + 3)
60.00 V / 0.01 V / ±(0.09% + 3)
600.0 V / 0.1 V / ±(0.09% + 3)
1500 V / 1 V / ±(0.15% + 2)
AC mV
Range / Resolution / Accuracy
600.0 mV / 0.1 mV / ±(1.0% + 3) (45 Hz ~ 500 Hz), ±(2.0% + 3) (500 Hz ~ 1000 Hz)
DC mV
Range / Resolution / Accuracy
600.0 mV / 0.1 mV / ±(0.09% + 2)
Continuity Test
Range / Resolution: 600 Ω / 1 Ω
Resistance
Range / Resolution / Accuracy
600.0 Ω / 0.1 Ω / ±(0.5% + 4)
6.000 kΩ / 0.001 kΩ / ±(0.5% + 4)
60.00 kΩ / 0.01 kΩ / ±(0.5% + 4)
600.0 kΩ / 0.1 kΩ / ±(0.5% + 4)
6.000 MΩ / 0.001 MΩ / ±(0.5% + 4)
50.00 MΩ / 0.01 MΩ / ±(1.5% + 4)
Capacitance
Range / Resolution / Accuracy
1000 nF / 1 nF / ±(1.2% + 2)
10.00 μF / 0.01 μF / ±(1.2% + 2)
100.0 μF / 0.1 μF / ±(1.2% + 2)
9999 μF / 1 μF / Typical 10%
Frequency
Range / Resolution / Accuracy
99.99 Hz / 0.01 Hz / ±(0.1% + 2)
999.9 Hz / 0.1 Hz / ±(0.1% + 2)
9.999 kHz / 0.001 kHz / ±(0.1% + 2)
99.99 kHz / 0.01 kHz / ±(0.1% + 2)
Environmental Specifications
Operating Temperature: -10°C to 60°C
Storage Temperature: -30°C to +70°C
Humidity (non-condensing):
0% to 90%, 10°C to 30°C
0% to 75%, 30°C to 40°C
0% to 45%, 40°C to 60°C
General & Mechanical Specifications
Dimensions: 22.5 cm × 10.5 cm × 5.7 cm
Weight: 0.7 kg (1.5 lb)
Battery Life
Standard alkaline battery: > 150 hours, no backlight (3 × AA alkaline)
Standard alkaline battery: > 100 hours when connected to a wireless current clamp (3 × AA alkaline)
