Protective conductor resistance RLO
Display range/ Measuring range/ Resolution/ Accuracy
0.00 Ω - 19.99 Ω/ 0.20 Ω - 19.99 Ω/ 0.01 Ω/ ± (2 % + 2 Digit)
20.0 Ω- 199.9 Ω/ 20.0 Ω - 199.9 Ω/ 0.1 Ω/ ± (2 % + 2 Digit)
200 Ω - 2000 Ω/ 200 Ω - 2000 Ω/ 1 Ω/ ± (5 % + 2 Digit)
Test current: ≥ 200 mA (≤ 2Ω + Rcomp)
Test voltage: 4 V DC … 10 V DC
Polarity reversing: Yes
Test lead zero (Rcomp): Up to 3 Ω
PV module/PV string, open-circuit voltage (Voc)
Display range/ Measuring range/ Resolution/ Accuracy
0.0 V - 99.9 V/ 5.0 V - 99.9 V/ 0.1 V/ ± (0.5 % + 2 Digit)
100 V - 1000 V/ 100 V - 1000 V/ 1 V/ ± (0.5 % + 2 Digit)
Polarity test: Yes
PV module/PV string, short-circuit current (Is/c)
Display range/ Measuring range/ Resolution/ Accuracy
0.0 A - 20.0 A/ 0.2 A - 20.0 A/ 0.1 A/ ± (1 % + 2 Digit)
Insulation resistance RINS
Display range/ Measuring range/ Resolution/ Accuracy
0.00 MΩ - 99.99 MΩ/ 0.20 MΩ - 99.99 MΩ/ 0.01 MΩ/ ± (5 % + 5 Digit)
100.0 MΩ - 199.9 MΩ/ 100.0 MΩ - 199.9 MΩ/ 0.1 MΩ/ ± (10 % + 5 Digit)
200 MΩ - 999 MΩ/ 200 MΩ - 999 MΩ/ 1 MΩ/ ± (20 % + 5 Digit)
Test voltage @ no load
Measuring range: 50 V / 100 V / 250 V up to 199.9 MΩ
500 V / 1000 V up to 999 MΩ
Resolution:1 V
Accuracy: 0 % to + 20 %
Test voltage @ ≥ 1 mA
Measuring range:250 V @ 250 kΩ, 500 V @ 500 kΩ, 1000 V @ 1 MΩ
Resolution: 1 V
Accuracy: 0 % to + 10 %
Testing current: Min. 1 mA (@ 250 kΩ / 500 kΩ / 1 MΩ), Max. 1.5 mA (short circuit)
Overvoltage protective devices (BV)
Display range/ Measuring range/ Resolution/ Accuracy
0 V DC - 1000 V DC/ 50 V DC - 1000 V DC/ 1 V DC/ ± (10 % + 5 Digit)
AC/DC voltage measurement via 4 mm test sockets
Display range/ Measuring range/ Resolution/ Accuracy
0.0 V AC - 99.9 V AC/ 5.0 V AC - 99.9 V AC/ 0.1 V/ ± (2.5 % + 2 Digit)
100 V AC - 700 V AC/ 100 V AC - 700 V AC/ 1 V/ ± (2.5 % + 2 Digit)
0.0 V DC - 99.9 V DC/ 5.0 V DC - 99.9 V DC/ 0.1 V/ ± (2.5 % + 2 Digit)
100 V DC - 1000 V DC/ 100 V DC - 1000 V DC/ 1 V/ ± (2.5 % + 2 Digit)
Detection AC/DC: Yes (Automatic)
+ / - polarity check: Yes
AC/DC current with i100 clamp
Display range/ Measuring range/ Resolution/ Accuracy (DC, AC 50 Hz/60 Hz)
0.0 A DC – 100 A DC/ 1.0 A DC – 100 A DC/ 0.1 A/ ± (5 % + 2 Digit) *
0.0 A AC – 100 A AC TRMS/ 1.0 A AC – 100 A AC TRMS/ ± (5 % + 2 Digit) *
* i100 clamp tolerances not inclusive
i100 Clamp Tolerances
Display range/ Measuring range/ Output signal/ Accuracy (DC, AC 50 Hz/60Hz)
N/A /1 A - 100 A DC or AC < 1 kHz/ 10 mV/A AC/DC /± (1.5 % + 0.1 A)
AC/DC Power measurement (with i100 clamp)
Display range/ Measuring range/ Resolution/ Accuracy (DC, AC 50 Hz/60Hz)
0.0 V AC - 700 V AC/ 5.0 V AC - 700 V AC/ 0.1 V/ ± (2.5 % + 2 Digit)
0.0 V DC - 1000 V DC/5.0 V DC - 1000 V DC/ 0.1 V/ ± (2.5 % + 2 Digit)
0 A AC/DC - 100 A AC/DC /1 A AC/DC- 100 A AC/DC /0.1 A /± (6.5 % + 3 Digit)
0 kW/kVA – 100 kW/kVA /5 kW/kVA – 100 kW/kVA /1 kW/kVA /± (10 % + 4 Digit)
SMFT-1000 PV Tester, and Performance Analyze, I-V Curve Tracer
SMFT-1000 size: 10 cm x 25.0 cm x 12.5 cm (3.8 in x 9.8 in x 4.9 in)
SMFT-1000 weight: 1.4 kg (3.09 lb)
Battery: 6 AA IEC LR6
Operating temperature: 0 °C to 50 °C (32 °F to 122 °F)
Storage temperature: -30 °C to 60 °C (-22 °F to 140 °F) batteries removed
Operating altitude: up to 2000 m
Storage altitude: up to 2000 m

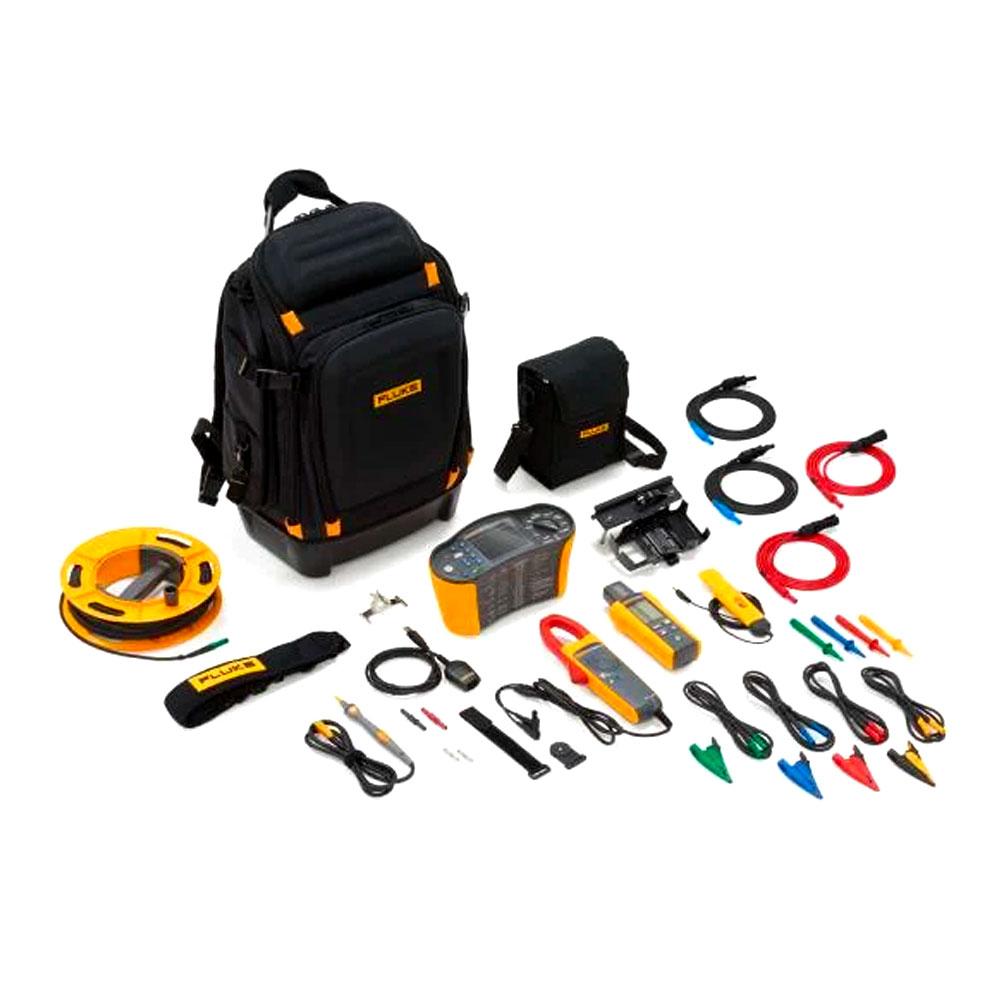

Includes:
Fluke SMFT-1000-BP Professional Tool Backpack
SMFT-1000 Multifunction PV Analyzer
Carry Strap
Fuse Pack
Adapter Cable IRDA Optical-to-USB
Zero Adapter
IRR2-BT Wireless Solar Irradiance Meter Pro
80PR-IRR External Temperature Probe
Mounting Bracket for solar panel
Carry Case
i100 AC/DC Current Clamp 100 A
TPAK Magnet Set
TP1000 Test Probe with Remote Test Button
TL1000 Test Lead Set
TL1000-MC4 Test Lead Set
TL1000/30M Test Lead on Reel
Coupler set
