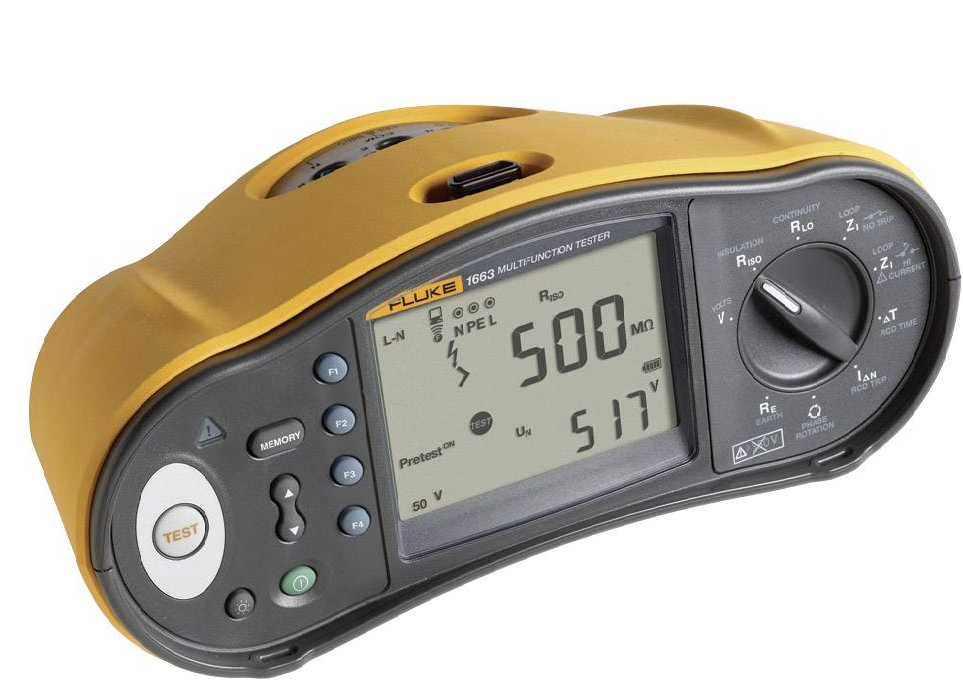

FLUKE FLK-1663 Multifunction Tester
AC Voltage Measurement: 500 V/± (0,8% + 3 digit)
Continuity Testing: 20 Ω, 200 Ω, 2000 Ω/± (1,5%+3 digit)
Insulation Resistance Measurement:
+ Test Voltage: 50, 100, 250, 500, 1000 V
+ Test Current:1 mA at 50 kΩ, 1 mA at 100 kΩ, 1 mA at 250 kΩ, 1 mA at 500 kΩ, 1 mA at 1000 kΩ
+ Insulation Range: 10 kΩ - 50 мΩ,
+ Accuracy: ± (3% + 3 digit)
Loop Impedance Measurement: 100 - 500 VAC (50/60 Hz)/± (3% + 6 digits) at no Trip mode, ± (2% + 4 digits) at Hi Current mode
PFC, PSC Test: 0 - 50 kA/ Determined by accuracy of loop resistance and mains voltage measurements.
RCD Testing: G, S, A, AC, B
Tripping Time Test (ΔT)
Tripping Current: 30% - 110% of RCD rated current/±5%
Earth Resistance Test: 200 Ω/±(3.5% + 10 digits)
Phase Sequence Indication
Size (L x W x H): 10 x 25 x 12.5 cm
Weight: 1.3 kg
Includes:
6x AA (IEC LR6) cell batteries
C1600 hard carrying case
Zero adapter
Heavy duty mains cord
STD standard test lead set
Padded carrying and waist strap
Quick reference guide
TP165X remote control probe and lead
