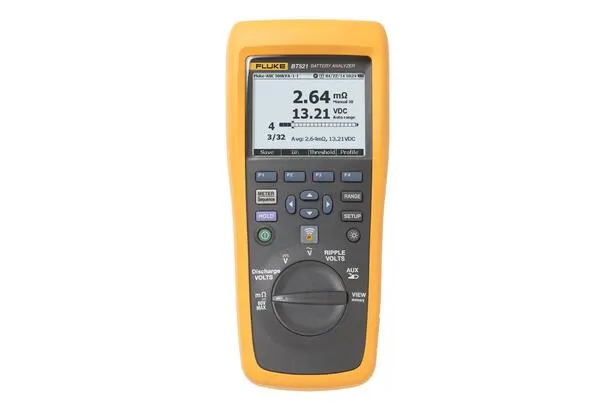

FLUKE BT521/APAC ອຸປະກອນວິເຄາະແບດເຕີຣີ (3000 mΩ, 1000VDC, 600VAC)
Battery Resistance / Strap Resistance
Measuring range: 3 mΩ / 30 mΩ / 300 mΩ / 3000 mΩ
Resolution: 0.001 mΩ to 1 mΩ depending on range
Accuracy:
3 mΩ: 1% + 8 or 1% + 68 (depending on condition)
30 mΩ: 0.8% + 6
300 mΩ: 0.8% + 6 or 0.8% + 12
3000 mΩ: 0.8% + 6
DC Voltage (VDC)
Measuring range: 6 V, 60 V, 600 V, 1000 V
Resolution: 0.001 V to 1 V
Accuracy: 0.09% + 5 across all ranges
AC Voltage (VAC)
Measuring range: 600 V
Frequency: 45 Hz – 500 Hz (with 800 Hz filter)
Resolution: 0.1 V
Accuracy: 2% + 10
Frequency (displayed via VAC or AAC)
Measuring range: 500 Hz
Resolution: 0.1 Hz
Accuracy: 0.5% + 8
AC Voltage Ripple
Measuring range: 600 mV and 6000 mV (20 kHz max)
Resolution: 0.1 mV (600 mV) / 1 mV (6000 mV)
Accuracy:
600 mV: 3% + 20
6000 mV: 3% + 10
ADC/AAC (with Fluke i410 accessory)
Measuring range: 400 A
Resolution: 1 A
Accuracy: 3.5% + 2
Temperature
Measuring range: 0 °C – 60 °C
Resolution: 1 °C
Accuracy: ± 2 °C (± 4 °F)
