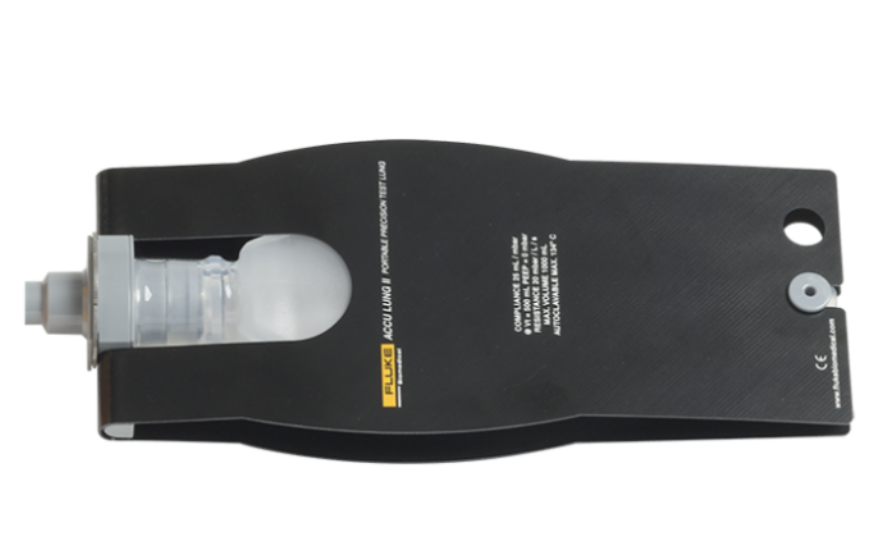

FLUKE Acculung II Portable Precision Test ປອດ

Operating Temperature: 10 ºC to 40 ºC (50 ºF to 104 ºF)

Storage Temperature: 0 ºC to 50 ºC (-32 ºF to 122 ºF)

General

Autoclavable at 134°C

Double-conus multi-connector (OD 22 conical, ID 15 conical)

Performance Characteristics

Static Compliance: 25 mL/mbar at Vt = 500mL, PEEP = 0 mbar

Resistance: 20 mbar/L/s 20 mbar/L/s

Capacity: 0 - 1000 mL (with 1L bag) 0 - 1000 mL (with 1L bag)

Physical Characteristics

Ventilator Circuit Connection

ISO 15 mm male

Warranty Specifications

15 month extended warranty on all parts and labor with the following limitations:

a) All rubber parts (including bellows) are warranted to be free from defects at the time of delivery

Dimensions (LxWxH): 300 x 115 x 42 mm

Weight: 190 g
