Fluke Network LIQ-KIT ຊຸດຕົວທົດສອບສາຍເຄເບີ້ນ + ເຄືອຂ່າຍຂັ້ນສູງ
Languages supported in UI: English, German, French, Japanese, Spanish, Thai, Traditional Chinese, Simplified Chinese, Korean, Russian, Italian, Portuguese
Weight: 1 lbs 6 oz (624g)
Battery:
Type: Lithium-ion, 3.6 V, 6400 mAh
Life: 8 hours typical
Charge time: 4.5 hours
Charging temperature range: 0 °C to +40 °C
Power Adapter:
Input: 100 to 240 VAC ±10%, 50/60Hz
Output: 15 VDC, 2 A maximum Class II
Host Interface: USB type C
Display: 800 x 480 color capacitive multi-touch
Dimensions: 8.5 in x 4.5 in
Operating Temperature: 0°C to 45°C
Storage Temperature: -10°C to +60°C
Operating Relative Humidity:
0 % to 90 %, 0°C to 35°C
0 % to 70 %, 35°C to 45°C
Operating Altitude: 4,000 m, 3,200 m with ac adapter
Vibration: Random, 2 g, 5 Hz-500 Hz
Drop: 1 m drop, 6 sides
Active Network Diagnostics
Feature
Diagnostic Protocols: Link Layer Discovery Protocol (LLDP)
Cisco Discovery Protocol (CDP)
Fast Link Pulses (FLP)
Internet Control Messaging Protocol (ICMP), Dynamic Host Configuration Protocol (DHCP)
IP Address Setup: LinkIQ address, DNS Server, Gateway for IPv4 or v6 either manually or via DHCP
IP Ping Test Results: Four response time results for target, DNS Server(s), Gateway, plus average and number lost
Power Over Ethernet Compatibility: Ethernet Alliance Certified to IEEE 802.3af/at/bt,
Hardware negotiation with signature resistance, Software negotiation with LLDP/CDP
Power Over Ethernet Measurements:
Loaded Voltage (V)
Loaded Power (W)
Port Blink: Blink the light of the connected port
Cable Test Specifications
Feature
Test Port: Shielded 8-pin modular jack accepts 8-pin modular (RJ45) plugs.
Commissioning Autotests: 10GBASE-T, 5GBASE-T, 2.5GBASE-T, 1000BASE-T, 100BASE-TX, 10BASE-T, Wire map Only.
Test Speed: 6 seconds for lengths < 70 m
Cable Types: Balanced twisted-pair cabling
Unshielded twisted-pair
Screened twisted-pair
2-pair and/or 4-pair
Wire Map-Only Tests:
Document wire map
Length of each pair
Diagnose split pairs
User selectable T568A or T568B
User selectable crossover settings (Straight through, Half-crossover, Full-crossover)
Test speed: 1 second for lengths < 120 m
Length (Maximum): 305 m (1000 ft)
Nominal Velocity of Propagation (NVP): User settable
Tone Generator: Generates digital tones compatible with Fluke Networks IntelliTone probe.
Generates analogy tones compatible with general analog probes.
Remote ID Locators: Use remote ID terminations to identify up to 7 unique ports or office outlets

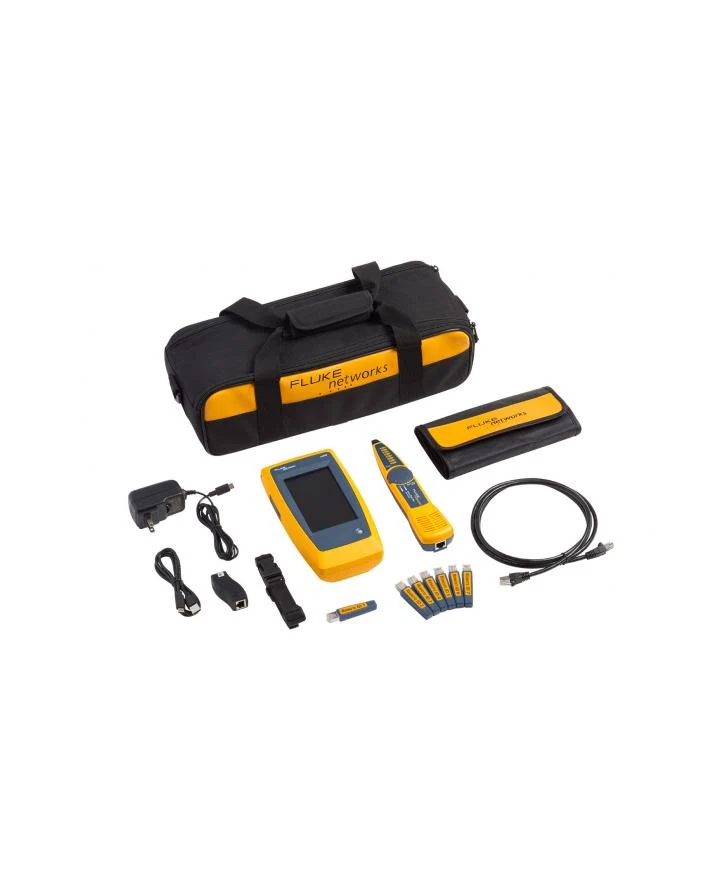

Includes:
LinkIQ™ Main Unit
Remote ID #1-7
RJ45-RJ45 patch cord
AC charger
RJ45/11 universal coupler
IntelliTone(TM) Pro 200 Probe
Duffel bag carrying case
