Fluke Network CIQ-100 ຕົວທົດສອບຄຸນວຸດທິ CableIQ
Cable types supported:UTP, STP, FTP, SSTP, RG6, RG59, audio and security
Qualification autotests1000BASE-T, 100BASE-TX, 10BASE-T, VoIP, 1394b S100, TELCO, Wiremap only, Coax
Supported tests: Wiremap, length, cable signal performance, digital toner, analog toner, Ethernet port detection and identification, analog telephone detection, blink port light, continuity, speaker test, cable fault finding, video signal detection.
Wiremap:Can detect single wire faults and supports MultiMap mode with up to seven remote office identifiers. Draws proportional wire length to breaks. Detects split pairs.
Find fault:Measures crosstalk and impedance and compares against appropriate limits based on qualification test selected. Detects location of large point sources as well as distributed sources in the cabling if they are sufficient to disqualify the application
Results storageUp to 250 qualification test results
PowerBattery type: 4 AA (NEDA 15A, IEC LR6) alkaline batteries
Battery life20 hours of typical use, without backlight
Other battery types supported4AA photo lithium, NIHM, NICAD
Dimensions and weight7in x 3.5in x 1.75in (17.8cm x 8.9cm x 4.5cm) 1.2 lb (0.55 kg)

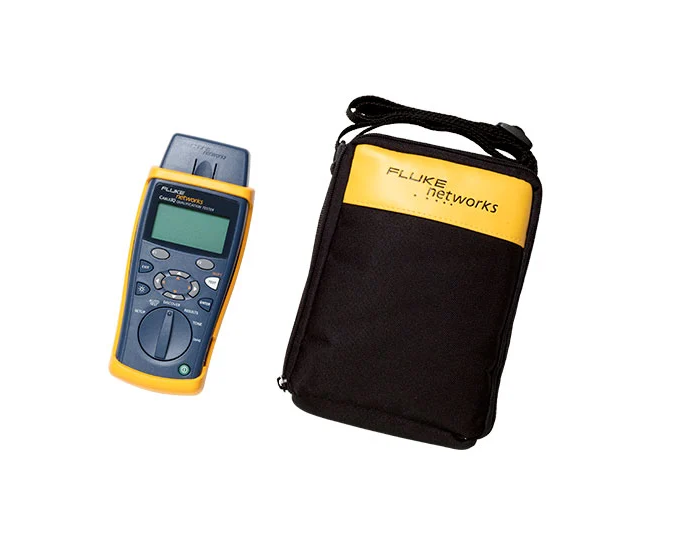

Includes:
CableIQ with remote adapter
CableIQ Reporter software CD
(2) RJ45-RJ45 patch cord
USB cable
Coax 'F' push-on adapter
Owner's CD and quick start guide
(4) AA batteries
Soft carry case
