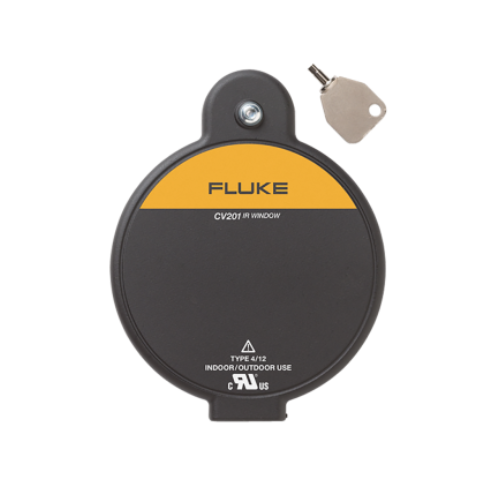

FLUKE Fluke CV201 ປ່ອງຢ້ຽມອິນຟາເລດ (50 mm)

Size: 50 mm (2 in)

Voltage range: Any

NEMA environment type: Type 4/12 (indoor/outdoor)

AutoGround™: Yes

ClirVu® optic: Yes

Operating temperature: -40°C to +232°C (-40° F to +450°F) and +260°C (500°F) intermittent

Compatible with all Fluke cameras: Yes

Jam nut locking system: Yes

Cover and fastener permanently attached: Yes

Single-hole install: Yes

Hand turn and security key door latch options: Yes

Visual inspection and fusion capable: Yes

Short/Mid/Long-wave IR and UV capable: Yes

Ratings and Testing

Arc-tested (IEEE C37.20.7): 63 kA for 30 cycles @ 60 Hz at KEMA

CSA type rating: Type 4

IP rating: IP67 at TUV

Install Actual mounting hole diameter required: 61.37 mm (2.416 in)

Overall window height: 112.9 mm (4.45 in)

Overall window width: 83.0 mm (3.27 in)

Overall window thickness: 16.2 mm (0.64 in)

Door latch: Hand Turn

Optics

Optic insert diameter: 50 mm (1.97 in)

Viewing aperture diameter: 42.93 mm (1.690 in)

Viewing aperture area: 1445 mm2 (2.24 in2)

Thickness: 2 mm (0.08 in)
