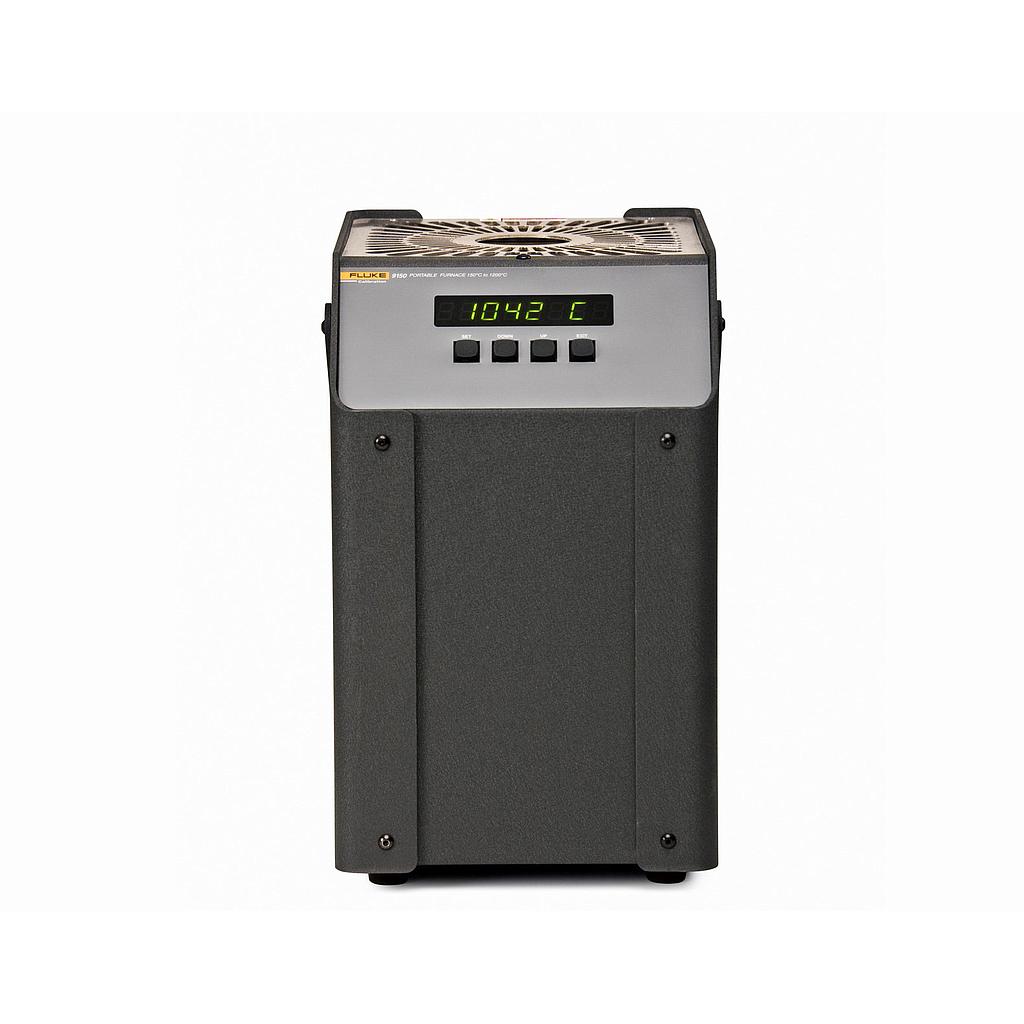

Fluke 9150 Thermocouple Furnace (150 °C to 1200 °C, ±0.5 °C)
Temperature Range: 150 °C to 1200 °C (302 °F to 2192 °F)
Display Resolution: 0.1 ° to 999.9 °, 1 ° above 1000 °
Stability: ±0.5 °C
Display Accuracy: ±5 °C
Well Diameter: 1.25" (32 mm)
Well Depth: 140 mm (5.5 in); (101 mm [4 in] removable insert plus 38 mm [1.5 in] insulator)
Heating Time: 35 minutes to 1200 °C
Cooling Time: 140 minutes with block
Well-to-Well Uniformity: ±2.5 °C (Insert “C" at 1200 °C)
Stabilization: 20 minutes
Power: 115 VAC (±10 %), 10.5 A or 230 VAC (±10 %), 5.2 A, switchable, 50/60 Hz, 1200 W
Size (HxWxD): 315 x 208 x 315 mm (12.4 x 8.2 x 12.4 in)
Weight: 13 kg (28 lb.)
Include Insert A or B, or C, or D
General Specifications |
|
| Temperature Range | 150 °C to 1200 °C (302 °F to 2192 °F) |
| Display Resolution | 0.1 ° to 999.9 ° 1 ° above 1000 ° |
| Stability | ±0.5 °C |
| Display Accuracy | ±5 °C |
| Well Diameter | 1.25" (32 mm) |
| Well Depth | 140 mm (5.5 in); (101 mm [4 in] removable insert plus 38 mm [1.5 in] insulator) |
| Heating Time | 35 minutes to 1200 °C |
| Cooling Time | 140 minutes with block |
| Well-to-Well Uniformity | ±2.5 °C (Insert “C" at 1200 °C) |
| Stabilization | 20 minutes |
| Power | 115 VAC (±10 %), 10.5 A or 230 VAC (±10 %), 5.2 A, switchable, 50/60 Hz, 1200 W |
| Size (HxWxD) | 315 x 208 x 315 mm (12.4 x 8.2 x 12.4 in) |
| Weight | 13 kg (28 lb.) |
| NIST-Traceable Calibration | Data at 150 °C, 300 °C, 450 °C, 600 °C, 800 °C, 1000 °C, and 1200 °C |
