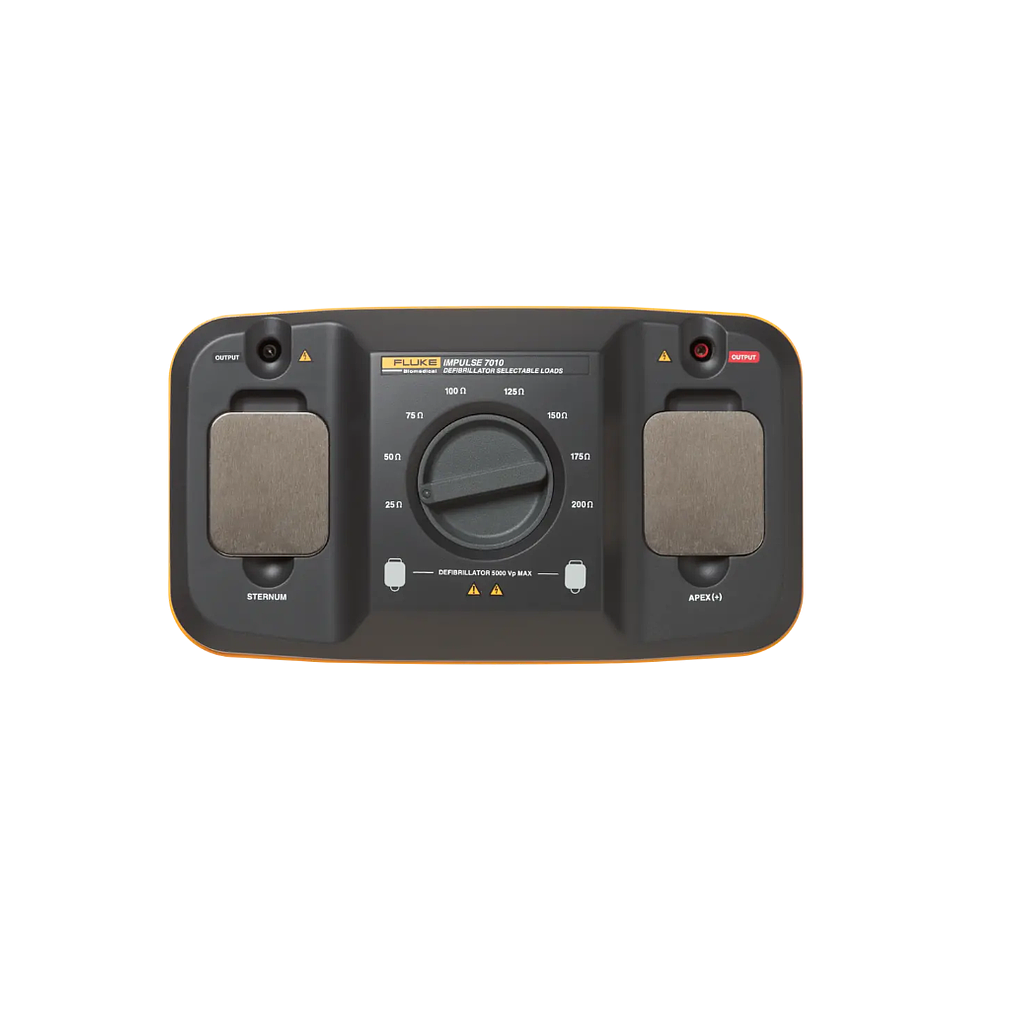

Fluke (Biomedical) Impulse 7010 ການໂຫຼດທີ່ສາມາດເລືອກໄດ້ຂອງເຄື່ອງກະຕຸ້ນຫົວໃຈ (25 Ω, 50 Ω, 75 Ω, 100 Ω, 125 Ω, 150 Ω, 175 Ω, 200 Ω)
Load settings: 25, 50, 75, 100, 125, 150, 175, and 200 Ω ±1%
Accuracy
Energy (All except Pulsed Biphasic): ±2% of reading + 0.1 J with 25 Ω and 75 through 200 Ω loads; ±1% of reading + 0.1 J with 50 Ω load.
Energy (Pulsed Biphasic): ±2.5% of reading + 0.3 J with 25 and 75 through 200 Ω loads; ±1.5% of reading + 0.3 J with 50 Ω load.
Maximum Voltage: 5000 V
Maximum continuous power: 12 W, equivalent to 10 defibrillation pulses of 360 J every 5 minutes.
Inductance:
< 2 μH @ 25 Ω
< 3 μH @ 50 Ω
< 4 μH @ 75 Ω and 100 Ω
< 5 μH @ 125 Ω
< 6 μH @ 150 Ω
< 7 μH @ 175 Ω
< 8 μH @ 200 Ω
Temperature
Operating Temperature: 10 °C to 40 °C
Storage Temperature: -20 °C to +60 °C
Humidity: 10% to 90%, non-condensing
Dimensions (H × W × L): 138.7 × 154 × 272 mm (5.46 × 6.07 × 10.71 in)
Weight (net): 1.54 kg (3 lb 6.2 oz)
