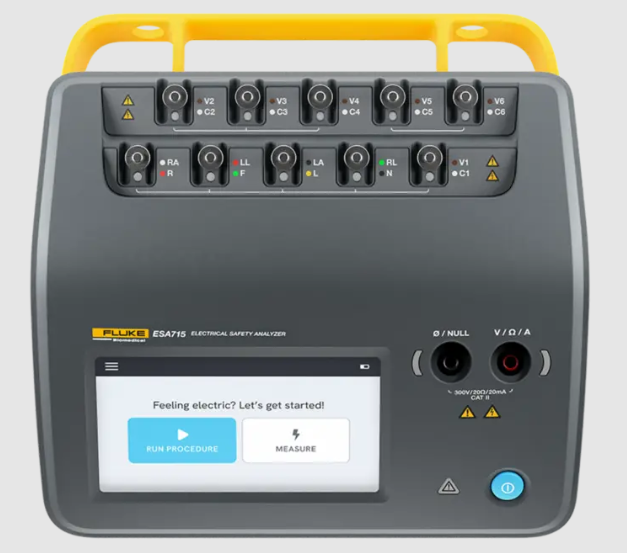

Fluke (Biomedical) ESA715 ອຸປະກອນວິເຄາະຄວາມປອດໄພດ້ານໄຟຟ້າ

General Specifications

Safety standard compliance lEC 61010-1: Overvoltage category II, pollution degree 2

IEC 61010-2-034: Measurement CAT II 300 V

Measurement equipment

standard compliance

IEC 61557-16:2014, except IP40 for certain equipment outlets

Dimensions (w x d x h) 214 x 207 x 92 mm (8.4 x 8.1 x 3.6 inches)

Weight 1.3 kg (2.7 pounds)

Ingress protection IP40 per IEC 60529, excluding equipment outlet

Operating temperature 0 to +35 °C (+50 to +95 °F)

Operating humidity 10-90 %, non-condensing

Storage temperature -20 to +60 °C (-4 to+ 140 °F)

Storage humidity 5-95 %, non-condensing

Battery charging temperature 8 to +28°C (+46 to +82°F)

Altitude 100-127 V ac mains voltage and ≤5 150 V on input jacks: ≤ 5000 m

200-240 V ac mains voltage and ≤5 300 V on input jacks: ≤ 2000 m

Battery Built-in rechargeable lithium-ion (<3600 mAh, 3.6 V)

Battery life Up to 2 h

Connectivity 1 x USB-C for PC communication, 2 x USB-A for peripherals

Display 5-inch touchscreen

Data storage > 10 000 measurements

Power (region dependent) 90-132 V ac, 20 A MAX, 47-63 Hz

90-132 V ac & 180-264 Vac, 10 A MAX, 47-63 Hz

90-132 V ac & 180-264 V ac, 15 A MAX, 47-63 Hz

90-132 V ac & 180-264 V ac, 16 A MAX, 47-63 Hz

CSA approval

US version,

90-132 V ac, 20 A MAX, 47-63 Hz

CSA approved

NEMA 6-15 version,

90-132 V ac & 180-264 V ac,

15 A MAX, 47-63 Hz

CSA approved

Measurement Specifications

Mains voltage

Range 0-264 V ac rms, limited by power specification

Accuracy ±(2 % + 0.2 V)

Point to point voltage

Range 0-300 V ac rms, limited by altitude specification

Accuracy ±(2 % + 0.2 V)

Protective earth resistance & Point to point resistance

Range 0-20 Ω

Accuracy ±(1 % + 0.01 Ω) at ≤ 2 Ω

±(1 % + 0.1 Ω) at >2 Ω

Test current Square wave of at least ±200 mA for ≤ 2 Ω

Open circuit voltage Max ±24 V

Equipment Current

Range 0-20 A ac rms, limited by power specification

Accuracy ±(5 % + 0.05 A)

Max duty cycle 0-10 A: continuous

10-15 A: 7 min on/3 min off

15-20 A: 5 min on/5 min off

Note: Equipment outlet will be turned off if max duty cycle is exceeded.

Leakage Current

Modes ac + dc (true rms), ac only, dc only

Mains on applied part leakage test: ac only

Patient load AAMI ES1:1993

IEC 60601-1:2005 / IEC 62353:2014

See users manual for more information.

Crest factor ≤2

Range 0 μA - 20 mA

Accuracy dc & 20 Hz - 0.5 kHz: ±(1 % + 1 μA)

0.5 kHz - 50 kHz: ±(2.5 % + 1 μA)

50 kHz - 1 MHz: ±(5 % + 1 μA)

Mains on applied part (Applies to: mains on applied part leakage, direct applied part leakage, alternative applied part leakage, alternative

equipment leakage)

Test voltage Mains voltage ±5 %

Current limit 1 mA ± 25 % at 115 V for AAMI ES1, NFPA 99

3.5 mA ± 25 % at 230 V for IEC 60601-1, IEC 62353 and EN 50678 / EN 50699

7.5 mA ± 25 % at 230 V for AS/NZS 3551

Additional uncertainty Up to ±2 μA for 120 V, up to ±4 μA for 230 V

Insulation Resistance

Test voltage 250 V dc

and 500 V dc

Range 0.1-100 MΩ

Accuracy ±(2 % + 0.2 MΩ) at ≤ 10 MΩ

±(7.5 % + 0.2 MΩ) at >10 MΩ

Test voltage accuracy +20 % / -0 %

Test voltage 50 V dc and

100 V dc

Range 0.1-20 MΩ

Accuracy ±(10 % + 0.2 MΩ)

Test voltage accuracy +30 % / -0 %

Short-circuit current 2 mA ± 0.25 mA

Maximum load capacitance 2 μF

ECG simulation

Frequency accuracy ±2 %

Amplitude accuracy ±5 %, for 2 Hz square wave

Waveforms ECG complex 30, 60, 120, 180 and 240 BPM

Square wave 0.125 and 2 Hz, 50 % duty cycle

Triangle wave 2 Hz

Pulse, 63 ms 30 and 60 BPM

Ventricular fibrillation

Respiration simulation

Rate Apnea (0 BrPM) and 10-100 BrPM in 10 BrPM steps

Waveforms Normal

Inspiration : expiration ratio 1:1

Impedance baseline 1000 Ω ± 5 % between leads

Impedance variation 1 ± 0.15 Ω

Respiration lead LL or LA, user selectable
