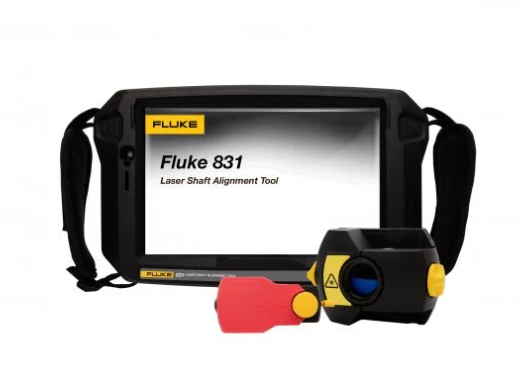

FLUKE FLUKE-831 ROW ເຄື່ອງມືຈັດຮຽງເລເຊີ Shaft
Computer
General specifications
CPU
Processor: Exynos 9810, 2.7GHz,1.7GHz Octa-Core
Memory: 4 GB RAM, 64 GB Flash memory
Display
Technology: TFT
Integrated light sensor for automated adjustment of the brightness to the display according to the lighting conditions hence extending battery life.
Resolution: 1920 x 1200 Pixel
Size: 203.1 mm (8”)
Connectivity
Wi-Fi: 802.11 a/b/g/n/ac/ax 2.4G+5GHz, HE80, MIMO, 1024-QAM.
Wireless: 5.0
RFID: NFC
Camera
Main camera resolution: 13.0 MP, Auto Focus
Front camera resolution: 5.0 MP
Environmental protectionIP 68: dustproof, submersible 1.5 m
Temperature rangeOperation: -20°C to 50°C (-4°F to 122°F)
Battery
Battery Type: Li-Ion rechargeable battery 3.8 V / 5
3.8 V / 5050 mAh / 19.2 Wh Operating time: Up to 11 hours
Dimensions (without hand straps):Approx. 256 x 149 x 35 mm (10 5/64” x 5 55/64” x 1 3/8”)
Weight (without hand straps):Approx. 710 g (1.6 lbs)
Reflector (prism)
General specifications
Type;90° roof prism
Accuracy (average):> 99%
Environmental protection:IP 67 (submersible, dustproof)
Temperature range
Operation temperature range:-20°C to 60°C (-4°F to 140°F)
Storage temperature range:-20°C to 80°C (-4°F to 176°F)
DimensionsApprox. 100 x 41 x 35 mm (4” x 1 5/8” x 1 3/8")
Weight:Approx. 65 g (2.3 oz)
Sensor
General specifications
Measurement principle:Coaxial, reflected laser beam
LED indicators
1 LED for laser beam status and battery status
1 LED for wireless communication
Power supply
Battery:Lithium-Ion rechargeable battery 3.7 V / 5 Wh
Operating time:10 hours (continuous use)
Charging time:
Using charger - 2.5 h for up to 90%
3.5 h for up to 100%
Using USB port – 3 h for up to 90%
4 h for up to 100%
Environmental protection
IP 65:Dustproof and water jets resistant, shockproof
Relative humidity:10% to 90% (non-condensing)
Ambient light protection:Yes
Temperature range
Operation temperature range:-10°C to 50°C (14°F to 122°F)
Charging temperature range:0°C to 40°C (32°F to 104°F)
Storage temperature range:-20°C to 60°C (-4°F to 140°F)
Dimensions:Approx. 105 x 69 x 55 mm
(4 9/64” x 2 23/32” x 2 11/64”)
Weight:Approx. 210 g (7.4 oz) with dust cap
Detector
Measurement range:Unlimited, dynamically extendible
Resolution:1 μm (0.04 mil) and angular 10 μRad
Error (avg):< 2%
Inclinometer
Measurement range:0° to 360°
Resolution:0.1°
Error (avg):0.3% full scale
Laser
Type:Semiconductor laser diode
Wavelength:630 - 680 nm (red, visible)
Safety class:Class 2 according to IEC 60825-1:2014. The laser complies with 21 CFR 1040.10 and 1040.11 except for deviations pursuant to Laser Notice No. 50, dated June 24, 2007.
Beam power:< 1 mW
Beam divergence:< 0.3 mrad
Safety precautions:Do not look into laser beams.
External interface:Wireless communication
Transmission distance:Up to 30 m (98 ft) direct line of sight
CE ConformityHereby, Fluke declares that the radio equipment contained in this product is in compliance with Directive 2014/53/ EU.
