Range: -14 to 10000 psi/ -0.97 to 690 bar/ -97 to 69 MPa
Resolution: 1 psi/ 0.01 bar/ 1 kPa
Accuracy: Positive pressure, ± 0.05 % of range Vacuum, ± 0.1 % of range
Pressure: 15000 psi/ 1035 bar/ 103.421 MPa
Electrical specifications (All specifications are valid to 110% of range)
Range
Current: 0 mA to 24 mA
Voltage: 0 V DC to 30 V DC
Resolution
Current range: 1 μA
Voltage range: 1 mV
Accuracy: 0.01 % ± 2 LSD all ranges @ 23 °C±5 °C
Temperature compensation: From 20 % FS / °C @ -10 °C to +18 °C and 28 °C to 50 °C
Loop Compliance Voltage: 24 V DC @ 20 mA
Temperature measurement accuracy inside the product: ±0.5 °C
Drive Capability: 1200 Ω (without HART resistor), 950 Ω (with internal HART resistor)
Mechanical specifications
Dimensions (H x W x L): 155 mm x 130 mm x 44 mm (6.1” x 5.1” x 1.7”)
Weight: 850g (1.87 lb)
Included

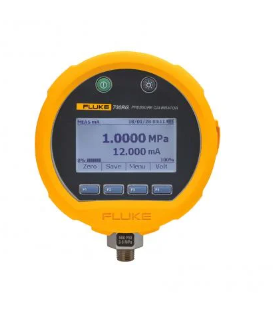

• Pressure calibrator
• Lithium-ion battery pack
• AC power supply/battery charger
• Universal power adapter (not available in all countries)
• Test lead set
• 1/4 in NPT-Female x M20-Male fitting
• 1/4 in NPT-Female x 1/4 in BSP-Male fitting
• Red alligator clip
• Black alligator clip
• USB cable
• Traceable calibrator report
