Functions: mA source, mA simulate, mA read, mA read/loop power, and volts read.
Ranges: mA (0 to 24 mA) and Volts (0 to 30 V DC)
Resolution: 1 µA on mA ranges and 1 mV on voltage range
Accuracy: 0.01% ± 2 counts, all ranges (@23° ± 5°C)
Operating temperature range: -10°C to 55°C (14°F to 131°F)
Humidity range: 10 to 95% non-condensing
Stability: 20 ppm of F.S. /°C from -10°C to 18°C and 28°C to 55°C
Display: 128 x 64 pixels, LCD Graphic w/backlight, .34 high digits
Power: 6 AAA alkaline
Battery life: 40 hours typical
Loop compliance voltage: 24 V DC @ 20mA
Over-voltage protection: 240 V AC
Overload current protection: 28 mA DC
EMC: EN61326 Annex A (Portable Instruments)
Dimensions (L x W x D): 15 x 9 x 3 cm (6 x 3.6 x 1.3 in)
Weight: 0.3 kg (9.5 oz)

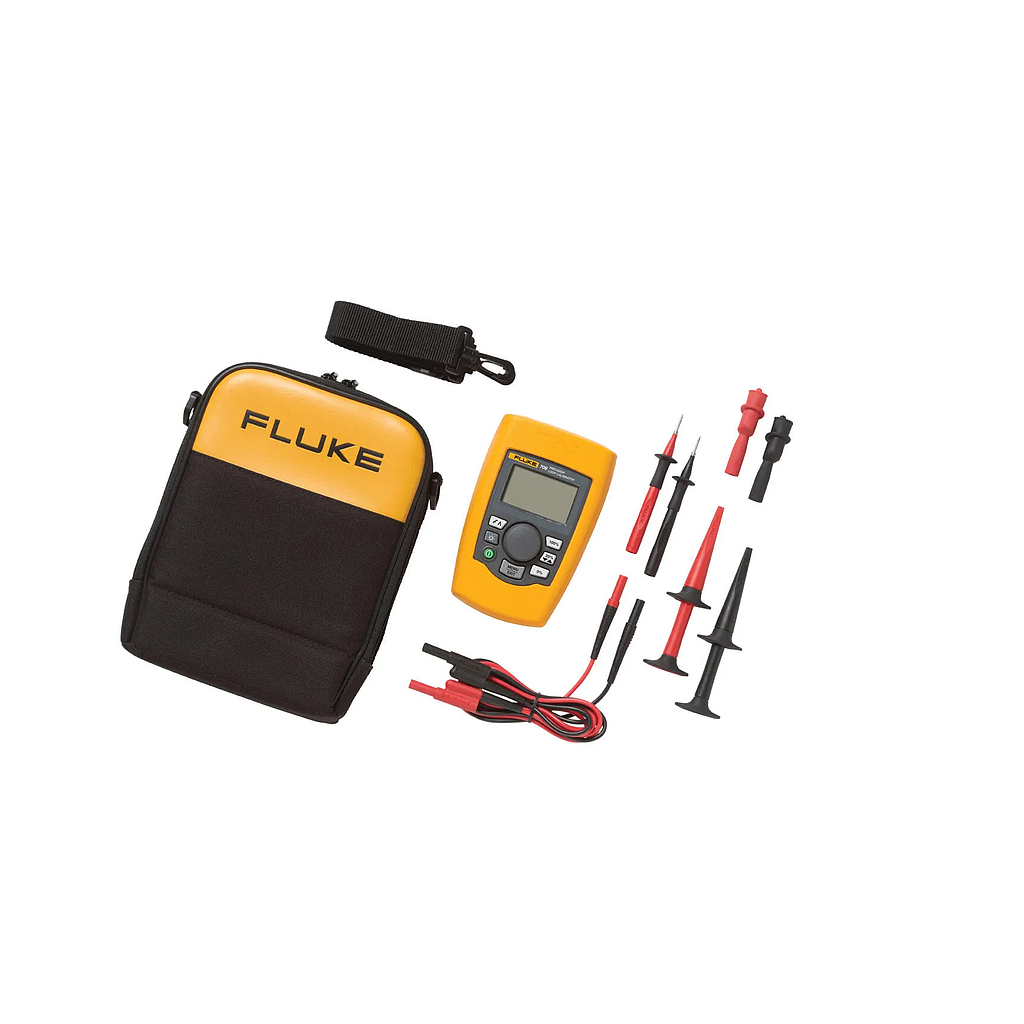

Includes:
754-8016 Alligator Clip Set
75X-8014 Stackable Lead Set
TP220-4201 Test Probes
AC280-5001 SureGrip Hook Clips
Soft Case
Six AAA Batteries (Installed)
Product Manual CD-ROM
Quick Reference Guide
Safety Information
