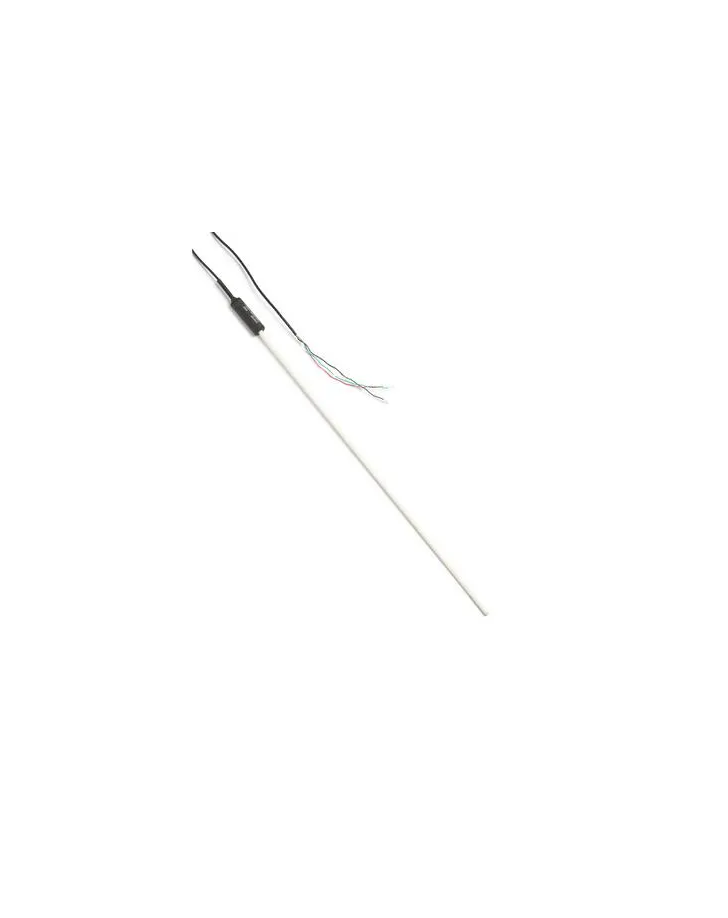

FLUKE Fluke 5624-20-B ໂພຣບອຸນຫະພູມສູງ (0 °C ~ 1000 °C)

Range: 0 °C to 1000 °C

Calibration Uncertainty:

±0.004 °C at 0 °C

±0.020 °C at 962 °C

Long-Term Drift (Rtpw), k = 2:

<0.01 °C at 0 °C / 100 hours at 1000 °C

<0.06 °C at 0 °C / 1000 hours at 1000 °C

Calibrated Accuracy† (k = 2):

±0.006 °C at 0 °C

±0.031 °C at 660 °C

±0.041 °C at 961 °C

Short-Term Stability: ±0.005 °C

Immersion Depth: <153 mm (6 in) at 700 °C

Resistance at the Triple Point of Water (Rtpw): 10 Ω (±0.1 Ω)

Hysteresis: <0.005 °C from 0 °C to 1000 °C

Thermal Cycling: <0.01 °C, 10 cycles from 0 °C to 1000 °C

Current: 1 mA

Size: 6.35 mm (0.25 in) O.D.

Length: 508 mm (20 in)

Sheath Material: Alumina

Datasheet
