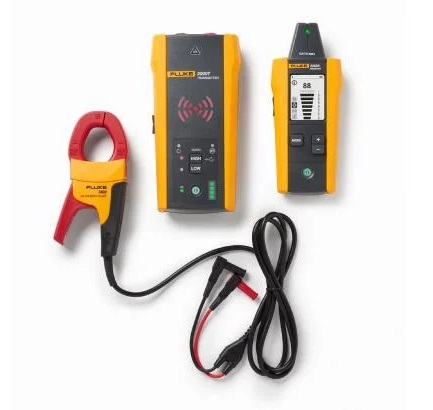

Includes:
Fluke 2052R Advanced Wire Tracer Receiver
Fluke 2000T Advanced Wire Tracer Transmitter
i400 AC Current Clamp
Fluke 2000ACC Test Lead Accessory Kit for 2052/2062
Premium hard carrying case
Batteries
Quick reference guide
2052R Receiver
Measurement category: CAT IV 600 V
Operating voltage: 600 V AC/DC
Operating frequency: Energized: 6.25 kHz; De-Energized: 32.768 kHz
Signal indications: Numeric, bar graph display and audible beep
Response time: Tip Sensor (Energized/De-Energized): 500 ms; NCV: 500 ms; Battery monitoring: 5 s
Range detection (open air)
+ Tip Sensor: Energized
Max distance via air: up to 6.1 m (20 ft)
Pinpointing: approx. 5 cm (1.97 in)
+ Tip Sensor: De-Energized
Max distance via air: up to 4.5 m (14.7 ft)
Pinpointing: approx. 5 cm (1.97 in)
+ NCV (40 Hz to 400 Hz)
Max. sensitivity: 90 V up to 2 m
Min. sensitivity: 600 V up to 1 cm
2000T Transmitter
Measurement category: CAT IV 600 V
Operating voltage: 600 V AC/DC
Operating frequency: Energized/Loop: 6.25 kHz; De-Energized: 32.768 kHz
Signal indications: LEDs and audible beep
Response time: Line voltage monitoring: 1 s; Battery voltage monitoring: 5 s
Current output of signal (typical): Energized circuit:
+ Energized circuit:
High mode: 60 mA rms
Low mode: 30 mA rms
+ De-energized circuit:
High mode: 110 mA rms
Low mode: 40 mA rms
Loop mode with test leads: 160 mA rms
Loop mode with i400 AC Current Clamp: 385 mA rms
Signal voltage output (nominal):
+ Energized circuit:
High mode: 14 W @ 230 V ac/50 Hz, 3.33 kΩ @ 230 V ac
Low mode: 4.6 W @ 230 V ac/50 Hz, 11.5 kΩ @ 230 V ac
+ De-energized circuit:
High mode: 31 V RMS, 140 Vp-p, 0.86 W @ 1 kΩ load
Low mode: 27.5 V RMS, 120 Vp-p, 0.1 W @ 1 kΩ load
Loop mode with test leads: 32 V RMS, 140 Vp-p, 0.87 W @ 1 kΩ load
Loop mode with i400 AC Current Clamp: 31 mV, 0.89 W @ 1 Ω load
i400 AC Current Clamp
Measurement category: CAT IV 600 V, CAT III 1000 V
Operating voltage: 1000 V AC
Current range: 400 A
Basic accuracy: 2 % + 0.06 A (45 Hz to 400 Hz)
Mechanical: 2000ACC Test Lead Accessory Kit
Includes:
2x 1 m test leads (red, black),
1x 7 m test lead (green),
2x test probes (black),
2x alligator clips (red, black),
2x outlet blade adapters (red, black),
2x outlet round adapters (red, black)
Measurement category: CAT IV 600 V (test leads), CAT II 1000 V (test probes), CAT IV 600 V (alligator clips), CAT II 300 V (outlet adapters)
Operating voltage and current:
600 V, 10 A max. (red/black leads), 600 V, 10 A max. (green lead), 1000 V, 8 A max. (black probe)
600 V, 10 A max. (alligator clips), 300 V, 10 A max. (outlet adapters)
Operating temperature: 0 °C to 50 °C (32 °F to 122 °F)
Operating humidity:
10 °C to <30 °C (95 %: 50 °F to <86 °F), 30 °C to <40 °C (75 %: 86 °F to <104 °F),
40 °C to <50 °C (45 %: 104 °F to <122 °F)
Storage temperature and humidity: 0 °C to 60 °C (32 °F to 140 °F),
Operating altitude: 2000 m (6561 ft)
Pollution degree: 2
Water and dust resistance: IP 20
Drop proof: 1 m (3.28 ft)
Key features
Locate energized and de-energized wires quickly and accurately in walls, ceilings, and floors
Find breaks or opens and shorts, and identify breakers and fuses easily
CAT IV 600 V safety rated
Includes the i400 AC Current Clamp accessory for inducing a tracing signal on the cable when there is no access to bare conductors
