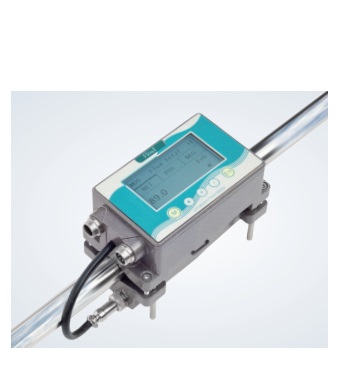

FlowT FT211 Ultrasonic Flow Meter (60~400 L/m)
Pipe material: Metal /PVC, PP or PVDF rigid plastic pipe
Liquid type: Water/other liquid (Single liquid medium without solid particles or impurities)
Temperature range: 0-75℃ (No freezing on the surface)
Low velocity cut off value (Default by factory): 0.1m/s
Display: 256*128, LCD
Response time: 0.5~60s
Accuracy: ±2%, (±1% after calibration)
Data Storage period: 300ms
Memory for data backup: EEPROM (Data storage: over 10 years, data read/write frequency: over 1 million times)
Power and I/O connection: M12 type aviation plug
Output: 4-20mA
Communication: Modbus RS485
(Options for output: OCT (pulse output)/ One relay alarm (please contact the factory)
Power supply: 10-24V VDC
Electric power: < 3W
Protective circuit: Power reverse connection protection, Power surge protection,
Output short circuit protection, Output surge protection
Enclosure protection class: IP65
Environment temperature: -10 to 60°C (No freezing)
Relative humidity: 35 to 85% RH (No condensation)
Vibration resistance: 10 to 55 Hz
double amplitude 1.5 mm, 2 hours in each XYZ axis
Impact resistant: 100 m/s2 16 ms pulse, 1000 times each for X, Y and Z axis
Main material: Aluminum, Industrial Plastics
Cable length: 2m(standard ), PT1000 sensor standard cable length is 9m
Flow Range
Pipe size (DN) Upper flow value（L/min）
15 60 L/m
20 100 L/m
25 200 L/m
32 300 L/m
40 400 L/m
