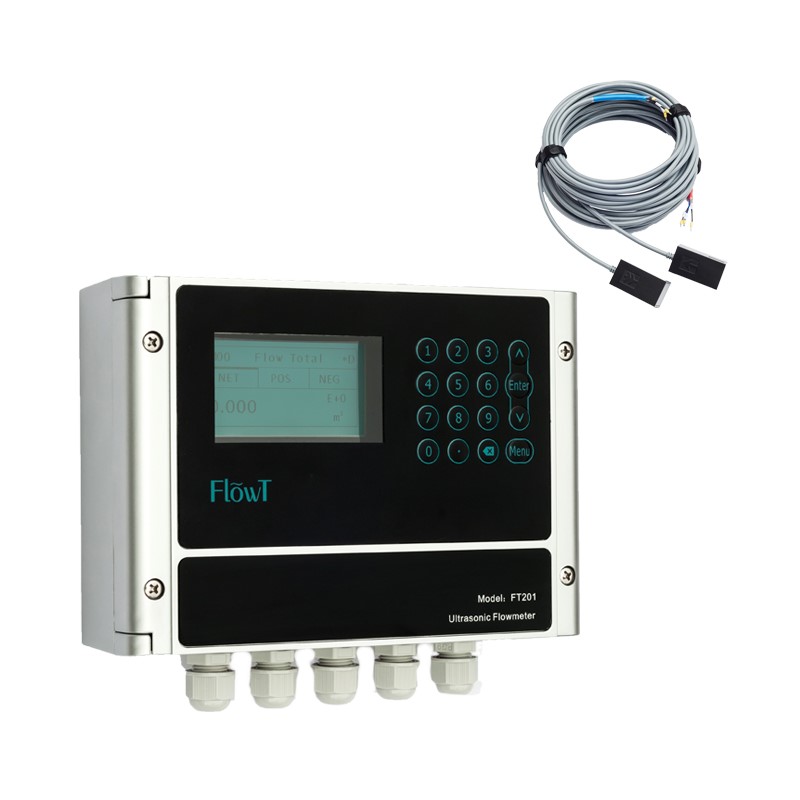

FlowT FT201 Ultrasonic Flow Meter (±0.09ft/s ~ ±16ft/s)
Performance
Flow range: ±0.09ft/s ~ ±16ft/s (±0.03m/s ~ ±5m/s)
Accuracy: ±1% of measured value
Repeatability: 0.2% of measured value
Linearity: ±1%
Pipe size: 1"to 48" (25mm to 1200mm).Pipe size under 1” is an option
Fluid: Water
Function
Outputs: Analog output: 4~20mA, max load 750Ω.
Pulse output: 0~10KHz
Communication: RS232/RS485 Modbus
Power supply: 10~36VDC/1A
Display: 240*128 back lit LCD
Temperature: Transmitter: -14℉~140℉(-20℃~60℃)
Transducer:-40℉~266℉(-40℃~130℃，standard -40℃~75℃)
Humidity: Up to 99% RH,non-condensing
Physical
Transmitter: PC/ABS,IP65
Transducer: ABS,IP68
Encapsulated design
Double-shielded transducer cable
Standard/maximum cable length:30ft/900ft(9m/274m)
