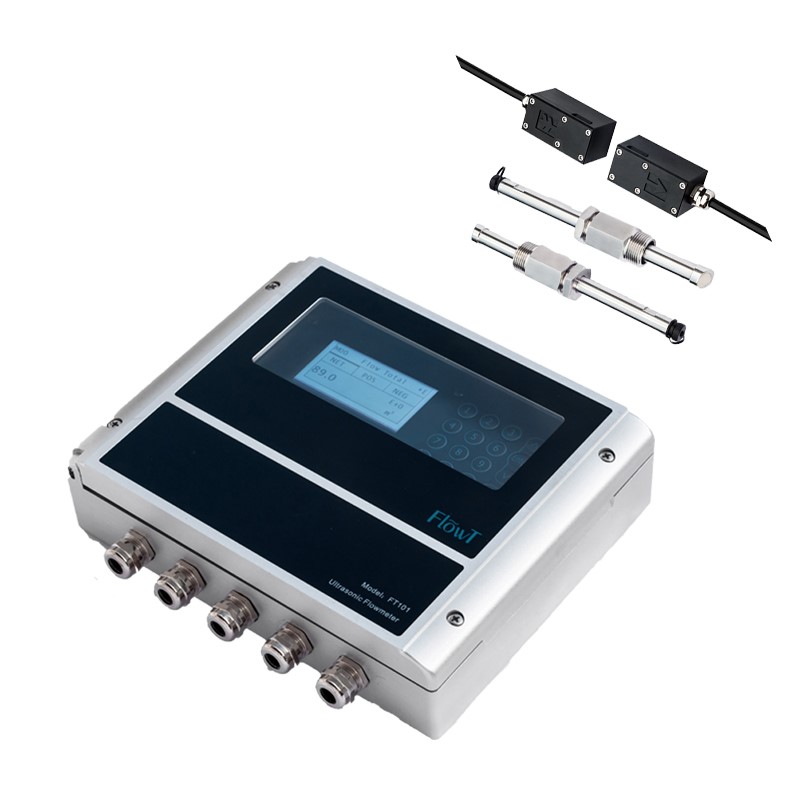

FlowT FT101 Ultrasonic Flow Meter (±0.09ft/s ~ ±40ft/s)
Performance
Flow range: ±0.09ft/s ~ ±40ft/s (±0.01m/s ~ ±12m/s)
Accuracy: ±0.5% of reading (for ±1.5ft/s~±40ft/s)
Repeatability: 0.15% of measured value
Linearity: ±0.5%
Pipe size: 1"to 200" (25mm to 5000mm). Pipe size under 1" is an option
Function
Outputs: Analog output: 4~20mA, max load 750Ω.
Pulse output: 0~9999Hz, OCT, (min. and max. frequency is adjustable)
Relay output: SPST, max 1Hz,(1A@125VAC or 2A@30VDC)
Communication: RS232&RS485
Memory: TF card (Max 4G)
Power supply: 90 to 245 VAC, 48 to 63 Hz. Or 10 to 36VDC
Display: 240*128 back lit LCD
Temperature: Transmitter: -40℉~140℉(-40℃~60℃)
Transducer:-40℉~176℉(-40℃~80℃,standard)
Humidity: Up to 99% RH,non-condensing
Physical
Transmitter: IP65
Transducer: IP68
Encapsulated design
Double-shielded transducer cable
Standard/maximum cable length:30ft/900ft(9m/274m)
