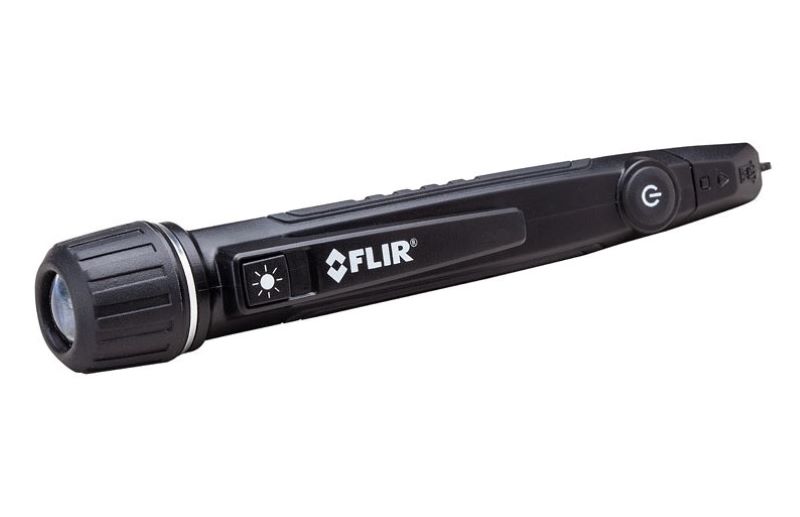

FLIR VP52 Non-Contact Voltage Detector + Worklight
AC Voltage Range (default, solid green light): 190 to 1000 V AC
AC Excitation Voltage / Distance: 190 V AC minimum / 1 cm (0.4 in)
Frequency Range: 45 to 65 Hz
High-Sensitivity Mode (solid amber light): 24 to 1000 V AC
Meter Data
Flashlight: Yes
Tip Light: Yes
Category Rating: CAT IV-1000 V
General Information
Certifcations: UL, cUL, CE, RCM
Power System
Power Requirements: 2 × AAA alkaline batteries
Battery Life: ~7 hours continuous (flashlight off)
Low Battery Voltage: Status LED flashes amber color
Auto Power Off After : 3 minutes of inactivity
Environmental Data
Drop Test: 3 m (9.8 ft)
Operating Ambient Temperatures: 0 to 60°C (-32 to 140°F)
Storage Temperature: -40 to 90°C (-40 to 194°F)
Physical Data
Weight: 0.20 kg (0.44 lb), including batteries
Dimensions: (H × W × L) 29 × 26 × 156 mm (1.1 × 1 × 6.1 in)
Unit Included
- VP52 CAT IV Vibrating non-contact voltage detector + flashlight
- 2 AAA batteries
- User manual
