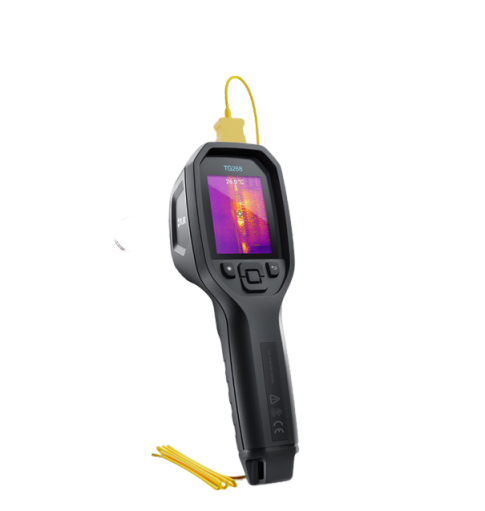

FLIR TG268 ກ້ອງຖ່າຍຮູບຄວາມຮ້ອນດ້ວຍລະບົບ IR (−25°C ~ 400°C, 24:1)
Imaging and Optical
IR Resolution: 160x120
Super Resolution: 320 × 240
MSX: Yes
Thermal Sensitivity/NETD: <50 mK or <0.05°C (0.09°F)
Field of View (H x V): 44° × 57°
Distance: Spot Size Ratio: 24:1
Color Palettes: Iron, Rainbow, White Hot, Black Hot, Arctic, Lava
Display: 2.4” color LCD, 320 × 240 pixels
Spectral Range: 7.5 − 14 µm
Measurement and Analysis
Object Temperature Range: −25°C to 400°C (−13°F to 752°F)
Center Spot: Yes
Dual Range: No
Spotmeter: Measures temperature at the center of the image, indicated by laser pointer
Minimum Focus Distance: 0.5 m (1.6 ft)
Minimum Measurement Distance: 0.26 m (0.85 ft)
Video Recording: Yes
Emissivity Correction: 4 pre-set levels with custom adjustment of 0.1 – 0.99
Contact Measurement: Type-K
Type-K Range: −30°C to 390°C (−22°F to 734°F)
Type-K Accuracy: ±1% or 3°C
Power
Battery Operating Time: 5 hrs continuous scanning; 4.5 hrs with laser on
Battery Type: Rechargeable Li-ion battery
Battery Voltage: 3.7 V
Battery Charging System: USB Type-C
Boot-Up Time: <10s
