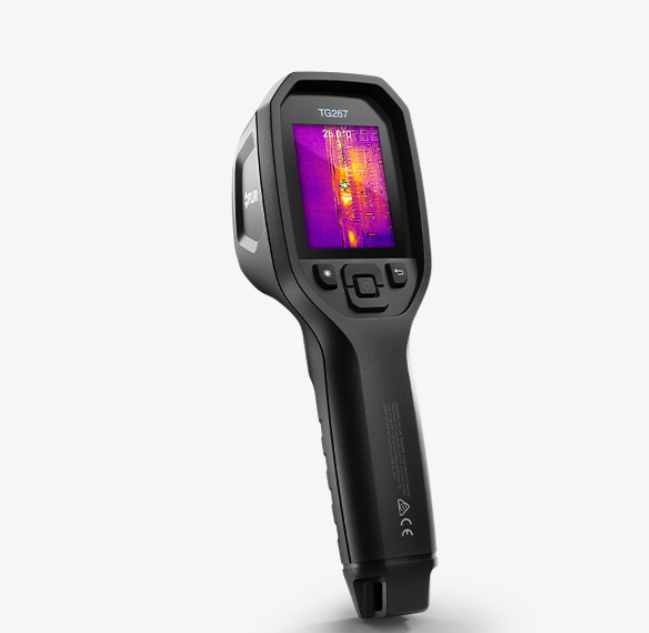

FLIR TG267 ກ້ອງຖ່າຍຮູບຄວາມຮ້ອນ
Accuracy:±1.5°C (2.7°F) for temperatures 50°C to 100°C (122°F to 212°F); up to ±3°C (±5.4°F) for -25°C to 50°C (-13°F to 122°F) and 100°C to 380°C (212°F to 716°F)
Detector Type:Focal plane array (FPA), uncooled microbolometer
Field of view (FOV):57° × 44°
IR Resolution:160 × 120 pixels
Laser:Class 1 laser indicates the temperature measurement area; button-activated
Object Temperature Range:-25°C to 380°C (-13°F to 716°F)
Thermal Sensitivity/NETD:<70 mK
Built-in Illuminator LED:100 lumens, 6500 K flashlight
FLIR ToolsCompatible
COMPLIANCE & CERTIFICATIONS
Certifications:CE, CB, RCM, IEC60825-1, FDA, UL, CEC, NRCan
CONNECTIONS & COMMUNICATIONS
Interface:USB 2.0, Bluetooth
Storage Media:eMMC 4 GB
USB:USB Type-C: data transfer/power
USB - Standard:USB 2.0 High Speed
ENVIRONMENTAL
Drop test:Designed for 2 m (6.6 ft)
EMC:• EN 61000-6-3 • EN 61000-6-2 • FCC 47 CFR Part 15 Class B
Emissivity Correction:Yes: 4 preset levels with custom adjustment of 0.1–0.99
Encapsulation:IP 54 (IEC60529)
Humidity (Operating and Storage):0-90% RH (0-37°C (32-98.6°F)), 0-65% RH (37-45°C (98.6-113°F)), 0-45% RH (45-55°C (113-131°F))
Operating Temperature Range:-10°C to 45°C (14°F to 113°F)
Radio Spectrum:• ETSI EN 300 328 • FCC Part 15.249 • RSS-247 Issue 2 • EN 301 489-1:2011 • EN 301 489-17:2009
Safety:CE/CB/EN61010/UL
Shock:25 g (IEC 60068-2-27)
Storage Temperature Range:-30°C to 55°C (-22°F to 131°F)
Tripod Mounting:1/4 in.-20 on handle bottom
Vibration:2 g (IEC 60068-2-6)
IMAGING & OPTICAL
Built-in Digital Camera:Yes
Color palettes:Iron, Rainbow, White hot, Black hot, Arctic, Lava
Detector Pitch:12 µm
Digital image enhancement:Yes
Focus:Focus free
Gallery:Yes
Image Adjustment:Automatic
Image Frequency:8.7 Hz
Image Modes:• MSX® (Multi Spectral Dynamic Imaging) • Visual with temperature reading
Minimum Focus Distance:0.3 m (0.98 ft)
Minimum Measurement Distance:0.26 m (0.85 ft)
Spectral Range:7.5 - 14 µm
Digital Camera Resolution/FOV:2 MP (1600 × 1200 pixels), 71° × 56° FOV
MEASUREMENT & ANALYSIS
Center spot:Yes
IR Temperature Resolution:0.1°C (0.2°F)
IR Thermometer Measurement Acquisition:Continuous scanning
Languages:Czech, Danish, Dutch, English, Finnish, French, German, Greek, Hungarian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese, Russian, simplified Chinese, Spanish, Swedish, traditional Chinese, Turkish.
Set-up Commands:• Local adaptation of units, language, date, and time formats • Screen brightness (high, medium, low) • Gallery, deletion of images
Spot Meter:Center spot on/off
METER DATA
Camera size (L x W x H):210 × 64 × 81 mm (8.3 × 2.5 × 3.2 in)
Camera weight incl battery:0.394 kg (13.9 oz)
Cover Glass Material:Optical grade silicon
Display:320 × 240 pixel, 2.4 in color LCD
POWER
Battery operating time:5 hours continuous scanning, 4.5 hours with laser on
Battery Type:Rechargeable Li ion battery
Battery voltage:3.7 V
Charging system:Battery is charged inside the camera
Charging Temperature:0°C to 45°C (32°F to 113°F)
Charging Time:4 hours to 90%, 6 hours to 100%
Power Management:Adjustable: off, 5 min., 15 min., 30 min.
Battery charge life: 30 days minimum
SHIPPING INFORMATION
Includes:TG267, printed documentation, wrist strap lanyard, USB A to USB C cable, carry pouch
STORAGE MEDIA
Image Storage Capacity:4 GB for storage of up to 50,000 pictures
Memory Type:Internal
Saved image formatJPEG
