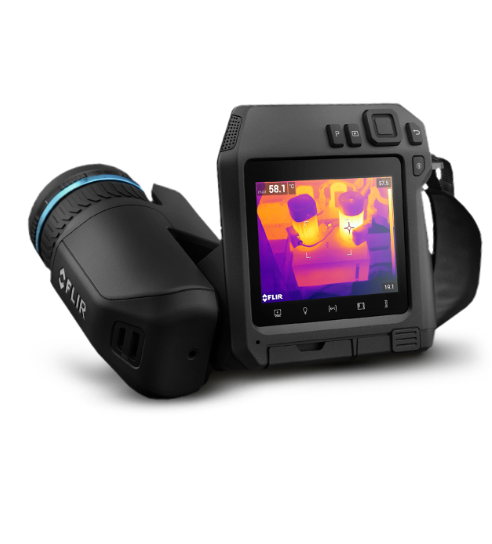

FLIR T530-24 ກ້ອງຖ່າຍຮູບຄວາມຮ້ອນ (-20°C~120°C, 0°C~650°C)
IR Resolution: 320 x 240 (76,800 pixels)
UltraMax® Resolution: 307,200 effective pixels
Object Temperature Range:
-20°C to 120°C (-4°F to 248°F)
0°C to 650°C (32°F to 1202°F)
Optional Calibration: 300°C to 1200°C (572°F to 2192°F)
Digital Zoom: 1-4x continuous
Common Features
Detector Type and Pitch: Uncooled microbolometer, 17 µm
Spectral Range: 7.5 - 14.0 µm
Image Frequency: 30 Hz
Lens Identification: Automatic
F-Number: f/1.3 (24° lens)
Focus: Continuous with laser distance meter (LDM), oneshot LDM, one-shot contrast, manual
Minimum Focus Distance: 24° lens – 0.15 m; optional macro mode
Programmable Buttons: 2
Image Presentation and Modes
Display: 4”, 640 x 480 pixel touchscreen LCD with
auto-rotation
Digital Camera: 5 MP, with built-in LED photo/video lamp
Color Palettes: Iron, Gray, Rainbow, Arctic, Lava, Rainbow HC
Image Modes: Infrared, visual, MSX®, Picture-in-Picture
Picture-in-Picture: Resizable and movable
UltraMax®: Quadruples pixel count; activated in menu andprocessed in FLIR Tools
Measurement and Analysis
Accuracy: ±2°C (±3.6°F) or ±2% of reading
Spotmeter and Area: 3 ea. in live mode
Measurement Presets: No measurement, center spot, hot spot, cold spot,
User Preset 1, User Preset 2
Laser Pointer: Yes
Laser Distance Meter: Yes; dedicated button
Annotations
Voice: 60 sec. recording added to still images or video via
built-in mic (has speaker) or via Bluetooth
Text: Predefined list or touchscreen keyboard
Image Sketch: From touchscreen, on infrared image only
Distance, Area Measurement: Yes; calculates area inside measurement box in m2 or ft2
GPS: Automatic image tagging
METERLiNK®: Yes
Image Storage
Storage Media: Removable SD card
Image File Format: Standard JPEG with measurement data included
Time Lapse (Infrared): 10 sec to 24 hrs
Video Recording and Streaming
Radiometric IR Video Recording: Real-time radiometric recording (.csq)
Non-Radiometric IR or Visual Video: H.264 to memory card
Radiometric IR Video Streaming: Yes, over UVC or Wi-Fi
Non-Radiometric IR Video Streaming
H.264 or MPEG-4 over Wi-Fi
MJPEG over UVC or Wi-Fi
Communication Interfaces: USB 2.0, Bluetooth, Wi-Fi
Video Out: DisplayPort over USB Type-C
Additional Data
Battery: Type Li-ion battery, charged in camera or on separate
charger
Battery Operating Time: Approx. 4 hours at 25°C (77°F) ambient temperature
and typical use
Operating Temperature Range: –15°C to 50°C (5°F to 122°F)
Storage Temperature Range: –40°C to 70°C (-40°F to 158°F)
Shock/Vibration/ Encapsulation; Safety: 25 g / IEC 60068-2-27, 2 g / IEC 60068-2-6 / IP 54; EN/UL/CSA/PSE 60950-1
Weight/Dimensions w/o Lens: 1.3 kg (2.9 lbs), 140 x 201 x 84 mm (5.5 x 7.9 x 3.3 in)
