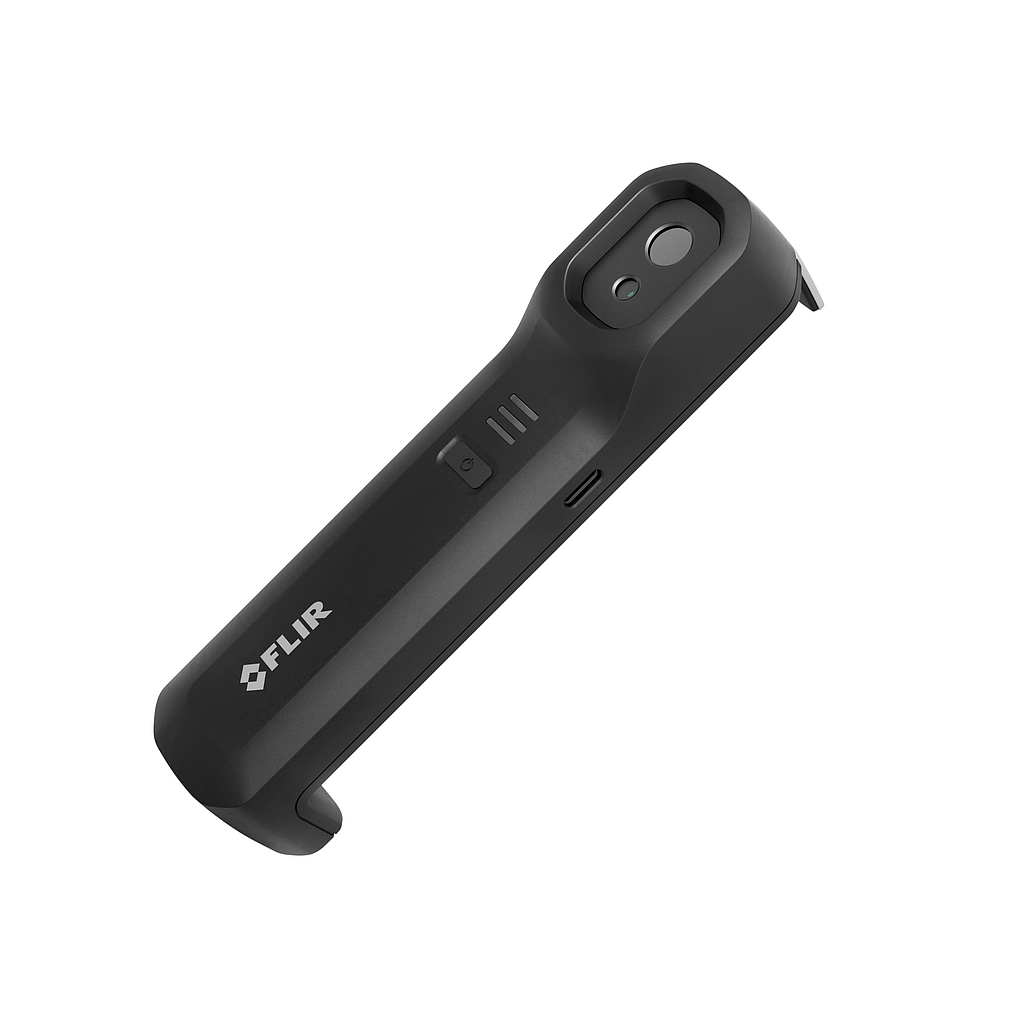

FLIR ONE Edge Pro ກ້ອງຖ່າຍຮູບຄວາມຮ້ອນທີ່ມີການເຊື່ອມຕໍ່ໄຮ້ສາຍສໍາລັບ iOS® ແລະ Android™ Smart Devices (160 × 120 (19,200 pixels))
Thermal Resolution: 160 × 120 (19.200 pixels)
Battery Life: Approximately 2 hours 30 minutes
Object Temperature Range: -20°C -120°C (-4°F-248°F) and 0°C -400°C (32°F-752°F)
Accuracy: ±3°C (5.4°F) or ±5%. Applicable 60 sec after start-up when the unit is within 15°C to 35°C (59°F to 95°F) and the scene is within 5°C to 120°C (41°F to 248°F)
Operating Temperature: -10°C to 50°C (14°F to 122°F), battery charging 0°C to 45°C (32°F to 113°F)
Spot Meter: Hottest, Coldest and 3 spot measurement
Adjustable MSX distance: 30 cm - Infinity
Focus: Fixed 30 cm - Infinity
Frame Rate: 8.7 Hz
HFOV/VFOV: 54° ±1° / 42° ±1°
Image Modes: Infrared, visual, MSX
Palette: Gray (white hot), Hottest, Coldest, Iron, Contrast, Arctic, Lava and Color Wheel
Shutter: Automatic/Manual
Thermal Resolution: 160 × 120 (19,200 pixels)
Thermal Sensitivity/NETD: 70 mK
Thermal Sensor: Pixel size 12 µm, 8 - 14 µm spectral range
Visual Resolution: 640 × 480
VividIR: Yes
POWER
Battery charge time: 60–90 min for fully charged, 15 min charging from empty battery, gives 40 min operating time
Battery Life: Approximately 2 hours 30 minutes
Charging Method: Female USB-C (5V/1A)
MEASUREMENT & ANALYSIS
Accuracy: ±3°C (5.4°F) or ±5%. Applicable 60 sec after start-up when the unit is within 15°C to 35°C (59°F to 95°F) and the scene is within 5°C to 120°C (41°F to 248°F)
Measurement Corrections: Emissivity; Reflected apparent temperature (22°C / 72°F)
Object Temperature Range: -20°C - 120°C (-4°F- 248°F) and 0°C-400°C (32°F-752°F)
Spot Meter: Hottest, Coldest and 3 spot measurement
GENERAL
Battery charge monitor: 0 - 100%
Clip Span: 130 mm (min) / 195 mm (max)
Compatible with FLIR software: FLIR ONE app, FLIR Ignite, FLIR Thermal Studio
Device Compatibility: iOS (version 16 and later) or Android (version 12 and later) smartphones and tablets
Dimensions (H x W x D): 37.5 mm × 35 mm × 149 mm (1.5 in × 1.4 in × 5.9 in)
Remote Operation: Up to 5 m (16.4 ft) from smart device via Wi-Fi
Weight: 153 g (5.4 oz)
ENVIRONMENTAL & CERTIFICATIONS
Certifications: RoHS, CE/FCC, CEC-BC, EN62133, UL1642, WEEE 2012/19/EU, IP54
Drop test: Drop from 2 m (6.56 ft)
Emissivity Settings: Matte: 95%, Semi-Matte: 80%, Semi-Glossy: 60%, Glossy: 30%
Non-Operating Temperature: -40°C to 70°C (-40°F to 158°F)
Operating Temperature: -10°C to 50°C (14°F to 122°F), battery charging 0°C to 45°C (32°F to 113°F)
COMMUNICATION & DATA STORAGE
Bluetooth: Uses Bluetooth to set up the peer-to-peer Wi-Fi network that the camera creates to connect to the mobile device
Capture modes: Video, Still image
Charging: Female USB-C (5V/1A)
File Formats: Radiometric JPG, MPEG-4 (file format MOV (iOS), MP4 (Android))
WiFi: IEEE 802.11 a/b/g/n
