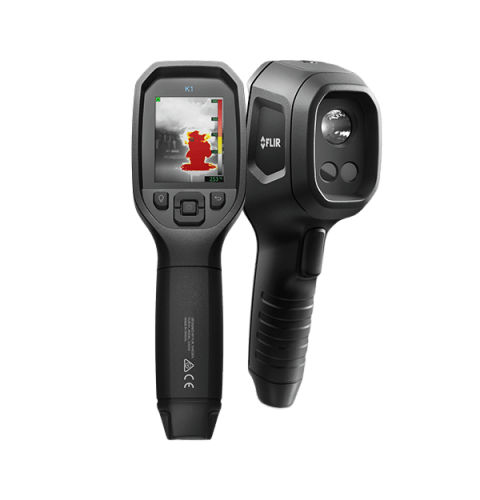

FLIR K1 ກ້ອງດັບເພີງ (–10°C ~ 140°C, 10°C ~ 400°C, 160 × 120 pixel)
IR Resolution: 160 × 120 pixels
Display: 2.4 in. backlit LCD, 320 × 240 pixels
Object Temperature Range: High Gain Mode: –10°C to 140°C (14°F to 284°F); Low Gain Mode: –10°C to 400°C (14°F to 752°F) (at room temperature)
Image Modes • TI Basic (White-hot with isotherm) • White-hot • Iron
Camera weight incl battery: 0.41 kg (0.90 lb.)
Camera size (L x W x H): 208 × 85 × 65 mm (8.19 × 3.3 × 2.6 in)
Imaging & Optical
Built-in Digital Camera: 320 × 240 pixels
Depth of Field: 0.1 m (0.33 ft.), infinity
Detector Type: Focal plane array, uncooled microbolometer
Digital Camera FOV: 71° × 56°, adapts to the IR lens
Field of view (FOV): 57° × 44°
f-number: 1.1
Focal Length: 1.9 mm (0.075 in.)
Focus: Fixed
Image Frequency: 8.7 Hz
Image Modes • TI Basic (White-hot with isotherm) • White-hot • Iron
IR Resolution: 160 × 120 pixels
Multi Spectral Dynamic Imaging (MSX): Yes
Pitch: 12 µm
Spatial resolution (IFOV): 6.22 mrad
Spectral Range: 8–13 µm
Storage Capacity: Approx. 10,000 images
Thermal Sensitivity/NETD: <100 mK @ 30°C (86°F)
Environmental & Certifications
Corrosion: NA
Drop: 2 m (6.6 ft.)
EMC: EN 61000-6-2:2005 (immunity) EN 61000-6-3:2011 (emission) FCC Title 47 part 15, subpart B
Encapsulation: IP 67 (IEC 60529)
Humidity (Operating and Storage): 0–90% RH (0°C–37°C / 32°F– 98.6°F); 0–65% RH (37°C–45°C / 98.6°F–113°F); 0–45% RH (45°C–55°C / 113°F–131°F)
Magnetic fields: EN 61 000-4-8 Class 3
Operating Temperature Range: Up to 10 min. with flashlight on, -10°C to 90°C (14°F to 194°F) Up to 2 min. with flashlight on, -10°C to 115°C (14°F to 239°F)
Shock: 25 g (IEC 60068-2-27)
Storage Temperature Range: –30°C to 55°C (–22°F to 131°F)
Tripod Mounting: UNC 1/4"-20
Vibration: 2 g (IEC 60068-2-6)
Power
Battery capacity: 3000 mAh
Battery operating time: Approximately 5.5 hours in MSX mode; 3.8 hours with torchlight only
Battery Type: Li ion
Battery voltage: 3.7 V
Battery weight: NA
Charging system: Battery is charged inside the camera
Charging Temperature: 0°C to 45°C (32°F to 113°F)
Charging Time: 4 hours to 90%, 6 hours to 100%
Power Management: Adjustable
Safety [power supply]: Camera: IEC/EN 61010-1 Power supply: UL, CSA, CE, PSE, CCC, and SAA
Start Up Time: 15 s
Start-up time from sleep mode: TBD
Measurement & Analysis
Accuracy: ±5°C (±9°F) or ±5% in High Gain Mode, or ±10°C (±18°F) or ±10% in Low Gain Mode, for ambient temperatures of 10–35°C (50–95°F)
Auto Range: NA
Automatic Hot Detection: NA
Camera size (L x W x H): 208 × 85 × 65 mm (8.19 × 3.3 × 2.6 in)
Camera weight incl battery: 0.41 kg (0.90 lb.)
Isotherm • Yellow coloring 150°C to 250°C • Orange coloring 250°C to 350°C • Red coloring >350°C
Object Temperature Range: High Gain Mode: –10°C to 140°C (14°F to 284°F); Low Gain Mode: –10°C to 400°C (14°F to 752°F) (at room temperature)
Spot Meter: Center spot
General
Beam Angle: 20°
Compatible with FLIR software: FLIR Tools
Flashlight: Bright LED flashlight
LED CCT: 5700K
LED CRI: 70
Light Output: 300 lumens
Material: PPSU Silicon rubber Aluminium, cast
Packaging Size: 283 × 148 × 103 mm (11.1 × 5.83 × 4.06 in)
User Interface
Display: 2.4 in. backlit LCD, 320 × 240 pixels
Communication & Data Storage
Image Storage: JPEG files
Image Storage Capacity: 4 GB
Image Storage Mode: FLIR radiometric JPEGs, visual JPEGs
Interface: Update from PC devices over USB
Storage Media: Internal memory (3.9 GB)
USB: USB Type-C
