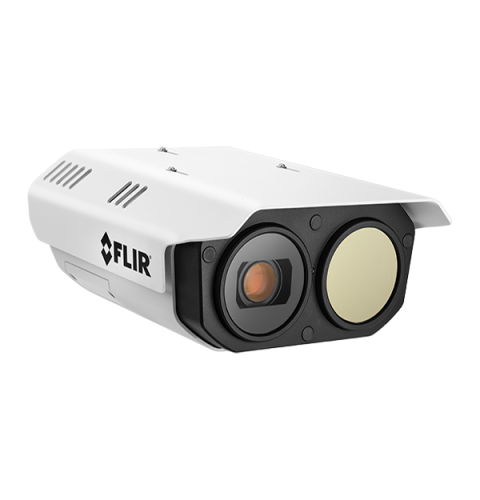

FLIR FH-324 R Multispectral Fixed Camera ສໍາລັບການກວດຫາໄຟຕົ້ນ (320 x 256, 24° FOV)
General
Dimensions (L x W x H): 314 x 233 x 124 mm/12.4" x 9.2" x 4.9"
Power Consumption: Nominal: 15 W Heaters enabled, 12 VDC: 48 W Heaters enabled, all other inputs: 70 W
Surge Immunity on AC Power Lines: EN 50130-4
Surge Immunity on Signal Lines: EN 50130-4
Environmental
Humidity: 0-95% relative humidity
IP Rating (dust & water ingress): IP66 & IP67
Operating Temperature Range: -40°C to 70°C/-40°F to 158°F
Shock: IEC 60068-2-27
Storage Temperature Range: -50°C to 85°C/-58°F to 185°F
Vibration: IEC 60068-2-64
Measurement & Analysis
Analytics Features: Region Entrance/Intrusion Detection, Crossover/Fence Trespassing; Auto/Manual Depth Setup, Human and Vehicle Rules, Tampering, Loitering, CNN classifier
Analytics Management: Web-based confguration and management, masking of analytic detection areas, adjustable sensitivity, automatic responses, remote I/O control
Measurement Accuracy: Target below 100 °C (212 °F): ± 5 °C (±9 °F) accuracy; Target below 150 °C (302 °F): ± 5% accuracy; Target above 150 °C (302 °F): ± 15% accuracy *Measured at 25°C ambient temperature. Error may be greater at extreme temperatures
Object Temperature Range: High Gain Mode: 0°C to 160°C 32°F to 320°F); Low Gain Mode: 0°C to 380°C (32°F to 716°F)
System Integration
Control Input/Output: Input: two dry alarm contacts; Output: two relay contacts 1A max at 24 Vac/30 Vdc Configurable between normally open and normally closed
Ethernet: 100/1000 Mbps
External Analytics Compatible: Yes
Network APIs: NEXUS® SDK NEXUS® CGI ONVIF Profile S, G, T
Streaming Resolution:
Primary Stream: Thermal: QVGA (320 x 256) Visible: 4k (3840 x 2160), 1080P (1920x1080), 720P (1280x720) & VGA 640x480 Secondary
Secondary Stream: Thermal: QVGA (320 x 256) Visible: 1080P (1920x1080), 720P (1280x720) & VGA 640x480
Supported Protocols: IPV4, HTTP, HTTPS, UPnP, DNS, NTP, RTSP, TCP, UDP, ICMP, IGMP, DHCP, ARP, IEEE 802.1X, ONVIF
Video Over Ethernet: Two independent channels of H.264/H.265 or M-JPEG (except 4k) for visible and thermal
Thermal Camera
Array Format (Thermal): 320 x 256
Detector Pitch (Thermal): 17 µm
f number (Thermal): f/1.0
Field of View (FOV) (Thermal): 24°×18°
Image Uniformity Optimization: Automatic Flat Field Correction (FFC); Thermal and Temporal Triggers
Spectral Range (Thermal): 7.5 µm to 13.5 µm
Thermal AGC Modes: Auto AGC, Manual AGC, Plateau Equalization AGC, Linear AGC, Auto Dynamic Detail Enhancement (DDE), Max Gain Setting
Thermal AGC Region of Interest [ROI]: Default, Presets and User definable to insure optimal image quality on subjects of interest
Thermal Sensitivity - NETD (Thermal): <35 mK @ 25°C F# 1.0
Video Frame Rate (Thermal): NTSC: 30 Hz or PAL: 25 Hz / 8.3 Hz
Video & Recording
Composite Video NTSC or PAL: Hybrid system with IP & analog video
Local Storage: Support for SD Card (not supplied)
Visible Camera
Array Format (Visible): 4K 2160p (3840 x 2160)
f number (Visible): 1.8
Field of View (FOV) (Visible): 34°×19°
Video Frame Rate (Visible): 30 Hz or less
