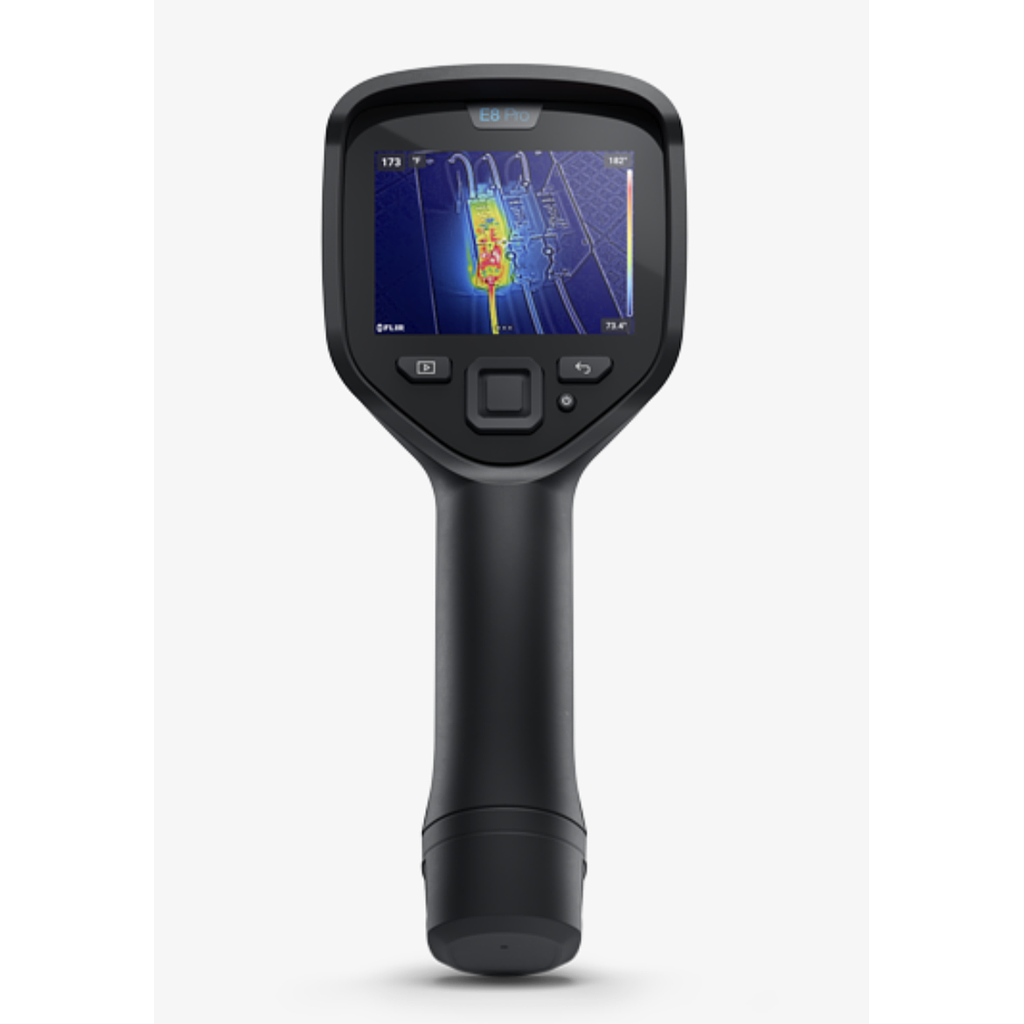

FLIR E8 Pro-NIST ກ້ອງອິນຟາເຣດກັບ Ignite™ Cloud (7.5 µm - 13 µm; -15°C - 50°C)

IR Resolution: 320 × 240 (76,800 pixels)

Thermal Sensitivity/NETD: <0.04°C (0.07°F) / <40 mK at 30°C (86°F)

Accuracy: ±2°C (±3.6°F) or ±2% of reading, for ambient temperature 10°C to 35°C (50°F to 95°F) and object temperature above 0°C (32°F)

Field of view (FOV): 33°

Digital Camera: 5 MP

Image Modes: Thermal MSX, Thermal, Picture-in-Picture, Digital camera

Display: 3.5 in, 640 × 480 color LCD

Storage Media: Internal memory and onboard FLIR Ignite™ cloud connectivity (with Wi-Fi)

IMAGING & OPTICAL

Color Palettes: Iron, White hot, Black hot, Rainbow, Arctic, Lava, Rainbow HC

Detector Type: Uncooled microbolometer

Digital Camera: 5 MP

Field of view (FOV): 33°

Focus: Focus free

Gallery: Thumbnails and custom folder structure

Image Frequency: 9 Hz

Image Modes: Thermal MSX, Thermal, Picture-in-Picture, Digital camera

IR Resolution: 320 × 240 (76.800 pixels)

Minimum Focus Distance: 0.36 m (1.18 ft)

Spectral Range: 7.5 µm to 13 µm

Thermal Sensitivity/NETD: <0.04°C (0.07°F) / <40 mK at 30°C (86°F)

MEASUREMENT & ANALYSIS

Accuracy: ±2°C (±3.6°F) or ±2% of reading, for ambient temperature 10°C to 35°C (50°F to 95°F) and object temperature above 0°C (32°F)

Delta T: Yes, NFPA 70B compliant

Isotherm: Above alarm, below alarm

Measurements correction: Emissivity; matt/semi-matt/semi-gloss + custom value, reflected apparent temperature, atmospheric compensation

Object Temperature Range: -20°C to 550°C (-4°F to 1022°F) in two ranges

Spot Meter: Center spot; box with min/max

USER INTERFACE

Display: 3.5 in, 640 × 480 color LCD

Text: Text annotation on image using onscreen keyboard

Touchscreen: Capacitive touch

POWER

Battery operating time: 4 hours

Battery Type: Rechargeable Lithium-ion battery

Charging system: Battery is charged inside the camera or in specific charger

Charging Time: 2 hours

Power Management: Automatic shut-down

ENVIRONMENTAL & CERTIFICATIONS

Certifications: UL, CSA, CE, PSE and CCC, WEEE 2012/19/EC, RoHs 2011/65/EC

EMC: EN 301 489-1; EN 301 489-17; EN 61000-6-3; EN 61000-6-2; FCC 47 CFR Part 15 Class B

Encapsulation: IP54 (IEC 60529)

Operating Temperature Range: -15°C to 50°C (5°F to 122°F)

Shock: 25 g (IEC 60068-2-27)

Storage Temperature Range: -40°C to 70°C (-40°F to 158°F)

Vibration: 2 g (IEC 60068-2-6)

GENERAL

Flashlight: Bright LED

List of Contents: Infrared camera, hard transport case, battery (inside camera) + extra battery, tabletop charger, power supply (with EU, UK, US and AU plugs), micro USB adapter, FLIR Thermal Studio Starter, and printed documentation

Packaging Size: 385 mm × 165 mm × 315 mm (15.2 in × 6.5 in × 12.4 in)
