IR Resolution: 80 x 60 pixels (4,800 pixels)
Thermal Imaging Detector: FLIR Lepton® microbolometer
Temperature Sensitivity: ≤ 150 mK
Emissivity Settings: 4 presets with custom adjustment
Temperature Accuracy: 3°C or 3%
Temperature Range: 14° F to 302°F (-10C to 150° C)
Field of View: 50° x 38°
Laser Pointer: Yes
Focus: Fixed
Thermal Imaging Palette: Iron, Rainbow, Grayscale
Level & Span: Auto
Measurements
True RMS: Yes
Range / Basic Accuracy
AC / DC Volts: 600.0 V ±0.7% / 0.5%
AC / DC mVolt: 600.0 mV ±1% / 0.3%
VFD AC Volts: 600.0 V ±1.0%
AC / DC Amps : 10.00 A ±1.0% / 0.7%
AC / DC mAmps: 600.0 mA ±1.0% / 0.7%
AC / DC μAmps: 6000 µA ±1.5% / 1.0%
Resistance: 6.000 MΩ ±0.9%
60.00 MΩ ±1.5%
Capacitance±0.9% 2.000 mF ±2.0%
10.00 mF ±5.0%
Diode Test: 3.000 V ±0.9%
Frequency Counter: 50.00 kHz ±0.3%
Temperature, Type-K Thermocouple
-40°F to 752.0°F; ±1.0% + 3°F
-40°C to 400°C; ±1.0% + 1.5°C
Additional Measurements
Continuity Check: 30 Ω and 480 Ω
Measuring rate: 5 samples per second
General Information
Auto Power Off: Yes
Display Size: 2.4 in TFT screen
Battery : 3 AA batteries; optional TA04 Li-Poly rechargeable battery
Drop Test: 3 m
IP Rating: IP40
Safety Category Rating: CAT III-600V, CAT IV-300V
Size (L x W x H) : 190 × 86.4 × 48.3 mm (7.5 × 3.4 × 1.9 in)
Weight: 428.3 g (15.1 oz)
Box Contents:

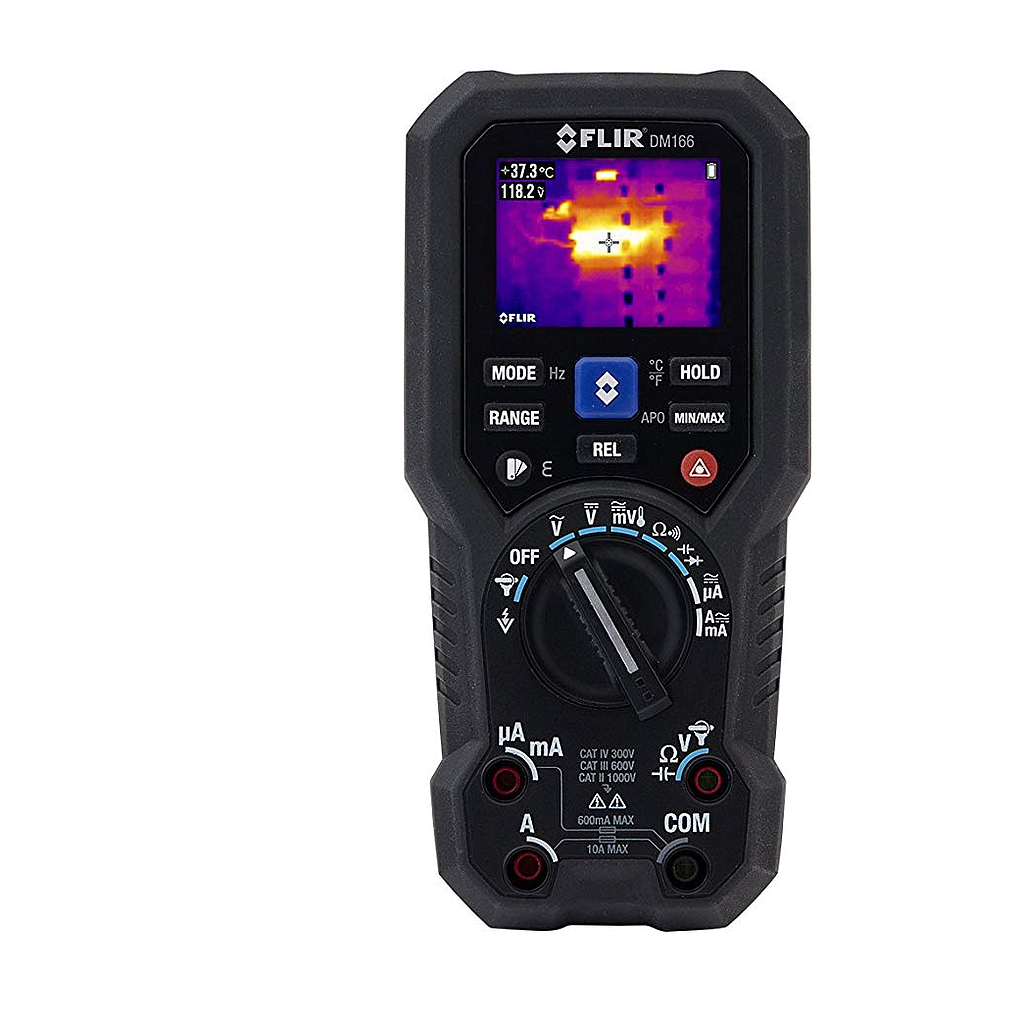

DM166, L91 lithium batteries, silicone test leads, soft carrying case
