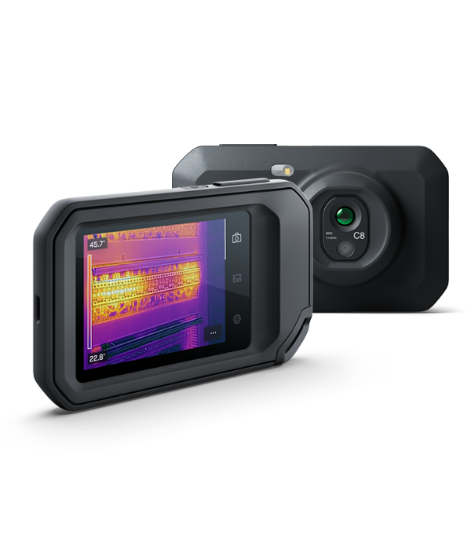

FLIR C8 ກ້ອງຖ່າຍຮູບຖ່າຍພາບຄວາມຮ້ອນ (-20°C ~ 450°C, 320 × 240 pixels)
Imaging and optical data
IR resolution: 320 × 240 pixels
Thermal sensitivity/NETD: <50 mK
Field of view (FOV): 35° × 27°
Minimum focus distance: 0.4 m (1.3 ft)
Spatial resolution (IFOV): 2.0 mrad/pixel
F-number: 1.4
Image frequency: 9 Hz
Focus: Focus free
Digital zoom: Yes, zoom pinch, 1 to 4× continuous
Detector data
Detector type: Focal plane array, uncooled microbolometer
Spectral range: 7.5–13 μm
Detector pitch: 12 μm
Image presentation
Display resolution: 640 × 480 pixels
Screen size: 3.5 in
Aspect ratio: 4:3
Auto orientation: Yes
Touch screen: Yes, capacitive
Display technology: IPS
Image adjustment: Automatic level and span / Manual level and span /1-Touch level and span
Image modes: Infrared image / Visual image / MSX / Picture-inpicture (IR area on visual image)
Gallery: Yes, incl. thumbnails and custom folder structure
Measurement
Object temperature range: -20°C to 450°C (-4°F to 842°F)
Accuracy at ambient temperature
• 0°C to 100°C (32°F to 212°F): ±2°C (±5.5°F)
• 100°C to 450°C (212°F to 842°F): ±2%
Measurement analysis
Measurement functions: Spot / Box with max. and min. / Isotherm
Measurements correction: Emissivity; matt/semi-matt/semi-glossy + custom value / Reflected apparent temperature / Atmospheric compensation
Color palettes Iron, Gray, Rainbow, Arctic, Lava, Rainbow HC
Service functions
Camera software update: Automatic over Wi-Fi / USB via computer
Storage of images
Storage media: Internal memory and onboard Flir Ignite™ cloud connectivity with Wi-Fi
Image storage capacity: >5000 sets of images
Image file format: Standard JPEG, 14-bit measurement data included
Digital camera
Resolution: 5 MP
Focus: Fixed
Field of view: 71.5° × 56° (84° diagonal)
Video lamp: Yes
Power system
Battery type: Rechargeable lithium-ion battery (built-in)
Battery operating time: 3 hours
Charging system: USB-C
Charging time: 2 hours
Power management: Adjustable stand-by and automatic shut-down
