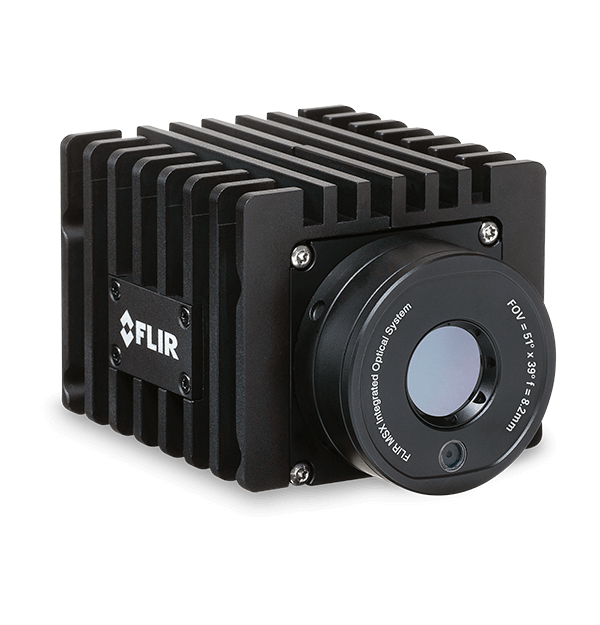

FLIR A70 29° ກ້ອງຖ່າຍຮູບການຖ່າຍທອດຮູບພາບຄວາມຮ້ອນ (-20°C~1000°C, 640 × 480, 29°)
Standard Configuration
Image & Optical Data
IR resolution: 640 X 480
Visual Resolution: 1280 × 960 pixels (optional)
Thermal Resolution: 35 mK
Focus: Fixed, adjustable with included focus tool
Spatial Resolution (IFOV): 0.84 mrad/pixel
FOV Options: 29°, 51°, 95°
Detector Pitch: 12 µm
Spectral Range: 7.5–14.0 µm
Frame Rate: 30 Hz
Object temperature range: -20°C to 175°C (-4°F to 347°F); -20°C to 250°C (-4°F to 482°F); 175°C to 1000°C (347°F to 1832°F)
Accuracy: ±2°C (±3.6°F) or ±2% of reading, for ambient temperature 15°C to 35°C (59°F to 95°F) and object temperature above 0°C (32°F)
Video Streaming, RTSP Protocol: Standard Configuration
Unicast: Yes
Multicast: Yes
Radiometric RTSP: No
Multiple Image Streams: Yes, visual camera option needed (P/N T300295)
Video Stream 0
Streaming Resolution: 640 × 480 pixels
Source: Visual / IR / MSX® / FSX® (visual camera is optional)
Contrast Enhancement: FSX® / Histogram equalization (IR only)
Overlay: With/Without
Encoding: H.264, MPEG4, or MJPEG
Video Stream 1
Streaming Resolution: 1280 × 960 pixels
Source: Visual (visual camera is optional)
Overlay: No
Encoding: H.264, MPEG4, or MJPEG
Video streaming, GVSP (GigE Vision Streaming Protocol)
Unicast: Yes
Multicast: Yes
Dual Video Streams: No (either IR, Visual, MSX, FSX or Radiometric 16 bit)
Visual Resolution: 640 × 480
Pixel Formats: YUV411, MONO8, MONO16
Radiometric Resolution: 640 × 480
Temperature Linear 16-bit: Yes
Compressed JPEG-LS: No
Ethernet
Ethernet Communication: GigE Vision, GenICam (SFNC 2.4)
Connector Types: M12 8-pin X-coded, female; RP-SMA, female
Ethernet Interface: Wired, Wi-Fi (optional)
Ethernet Power: Power over Ethernet, PoE IEEE 802.3af class 3
Ethernet Protocols: IEEE 1588, SNMP, TCP, UDP, SNTP, RTSP, RTP, HTTP, ICMP, IGMP, sftp (server), FTP (client), SMTP, DHCP, MDNS (Bonjour), uPnP
Ethernet Standard: IEEE 802.3
Ethernet Type: 1000 Mbps
Digital Input/Output
Connector Type: M12 Male 12-pin A-coded (shared with external power)
Digital Input: 2× opto-isolated, Vin (low) = 0 to 1.5 V, Vin (high) = 3 to 25 V
Digital Output: 3× opto-isolated, 0 to 48 V DC, max. 350 mA (derated to 200 mA at 60°C). Solid-state opto relay, 1× dedicated as fault output (NC)
Power
Power Consumption: 7.5 W at 24 V DC typical, 7.8 W at 48 V DC typical, 8.1 W at 48 V PoE typical
External Power Operation: 24/48 V DC 8 W max
External Voltage: Allowed range 18 V to 56 V DC
Power Connection: M12 12-pin A-coded, male (shared with Digital I/O)
Wi-Fi
Connector Type: Female RP-SMA
