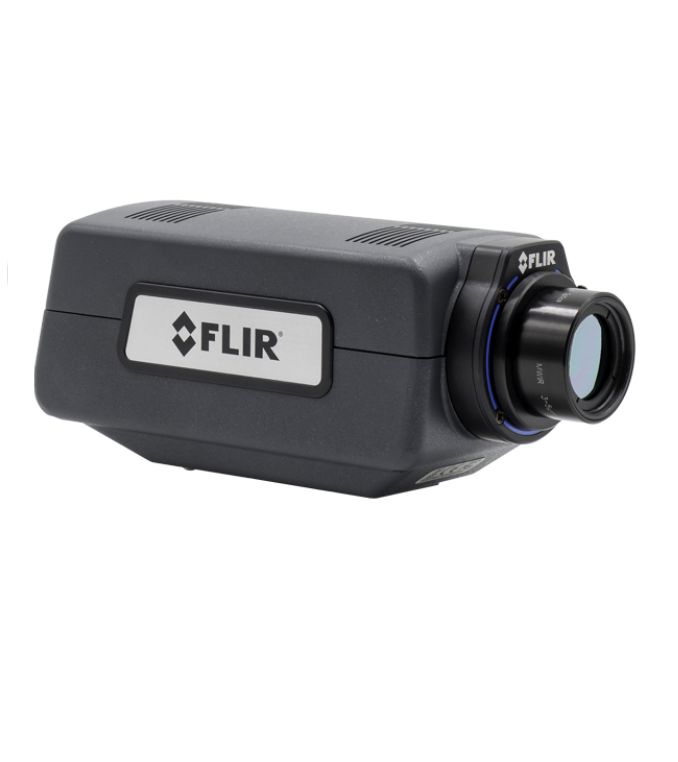

FLIR A6481 ກ້ອງຖ່າຍຮູບ MWIR ທີ່ມີລະບົບລະບາຍຄວາມຮ້ອນທີ່ໃຊ້ໄດ້ດົນ (640 × 512 pixels; -20°C ~ 350°C)
Focus: Motorized (compatible with manual)
Filter Holder (Warm): 3-position motorized filter wheel (1 in. diameter filters)
Available Lenses:
Manual (3-5 µm): 17 mm, 25 mm, 50 mm, 100 mm, 200 mm, 50 mm Macro
Motorized (3-5 µm): 17 mm, 25 mm, 50 mm, 100 mm, 200 mm
Detector Type: Flir HOT MW (SLS)
Spectral Range: 3.0 – 5.0 µm
IR Resolution: 640 × 512 pixels
Detector Pitch: 15 µm
Thermal Sensitivity/NETD: < 30 mK (25 mK typical at 30°C)
Sensor Cooling: Flir FL-100 liner (27,000-hour cooler life)
Frame Rate (Full Window): Programmable: 0.0015 Hz to 125 Hz
Dynamic Range: 14-bit
Integration Time: 480 ns to ~full frame
Radiometric Data Streaming: Gigabit Ethernet (GigE Vision)
Standard Video: SDI (720p @ 50/59.9, 1080p @ 29.9)
Command and Control: GenICam (GigE), RS-232
Standard Temperature Range: -20°C to 350°C (-4°F to 662°F)
Optional Temperature Range: Up to 3000°C (with ND1, ND2, or ND3 filters)
Accuracy: ≤ 100°C: ±2°C (±1°C typical); > 100°C: ±2% of reading (±1°C typical)
Camera f/#: f/2.5
Operating Temperature Range: -20°C to 50°C (-4°F to 122°F)
Power: 24 V DC (< 24 W steady rate)
Weight (without lens): 2.3 kg (5 lbs)
Size (L × W × H): 226 × 102 × 109 mm (8.9 × 4.0 × 4.3 in)
