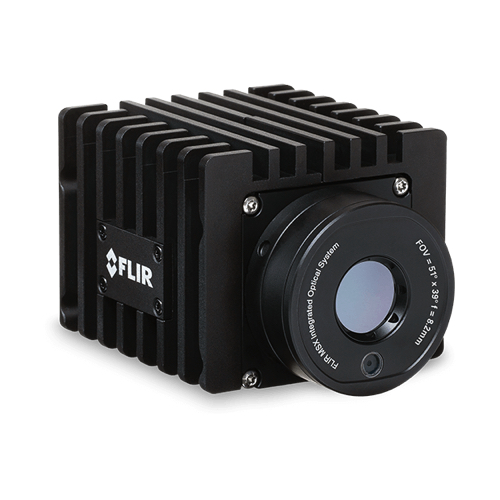

FLIR A6301 - 17 mm lens ກ້ອງຖ່າຍຮູບຄວາມຮ້ອນຂັ້ນສູງ (640 × 512 pixels; 31.5° × 25.5°; -20°C ~ 200°C)
IR Resolution: 640 × 512
Field of view (FOV): 17 mm lens – 31.5° × 25.5°
Minimum focus distance: 17 mm lens – 60 mm
Thermal Sensitivity/NETD: ≤15 mK at 25°C
Detector Type: High Operating Temperature (HOT) MWIR T2SLS
Spectral Range: 3.4 μm – 5.1 μm
Detector Pitch: 15 μm
F/#: f/2.5
Frame Rate: 30 Hz
Focus: Manual
Temperature Measurement Range: -20°C to 200°C
Accuracy: ≤100°C ±2°C, >100°C ±2% of reading
Sensor Cooling: FLIR FL100 Linear cooler (27,000-hour mean time to failure)
Radiometric IR Video Streaming: GigE Vision
Non-radiometric IR Video Streaming: H.264 or MJPEG over RTSP
Digital Inputs: 2× opto-isolated, Vin(low)= 0–1.5 V, Vin(high)= 3–25 V
Digital Outputs: 3x opto-isolated, 0–48 V DC, max. 350 mA; solid-state opto relay; 1x dedicated as Fault output (NC)
Primary Power Source: PoE+ Type 2 (30 W min) or 18 V–56 V DC
Operating Temperature Range: -20°C to 50°C
Encapsulation: IP50
Weight (w/o lens): 1.32 kg (2.9 lbs)
Size (w/o lens): 200 × 76 × 92 mm (7.9 × 3.0 × 3.6 in)
Weight (w/lens): 1.77 kg (3.9 lbs)
Size (w/lens): 267 × 76 × 92 mm (10.5 in × 3.0 in × 3.6 in)
