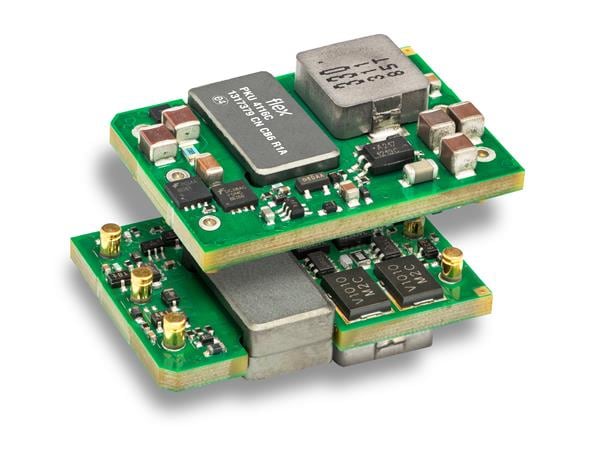

Flex Power Modules PKU4116CPI ປະກັນແຍກ

Width: 22.86 mm (0.9 in)

Height: 9.6 mm (0.378 in)

Length: 33.02 mm (1.3 in)

Industry: Industrial

Dimensions: 33.02 mm x 22.86 mm x 9.6 mm

Output Power: 100 W

REACH - SVHC: Details

Input Voltage: 36 V to 75 V

Mounting Style: Through Hole

Isolation Voltage: 1.5 kV

Number of Outputs: 1 Output

Input Voltage - Max: 75 V

Input Voltage - Min: 36 V

Output Current-Channel 1: 3.3 A

Output Voltage-Channel 1: 10 V to 33 V

Maximum Operating Temperature: + 125 C

Minimum Operating Temperature: - 40 C
