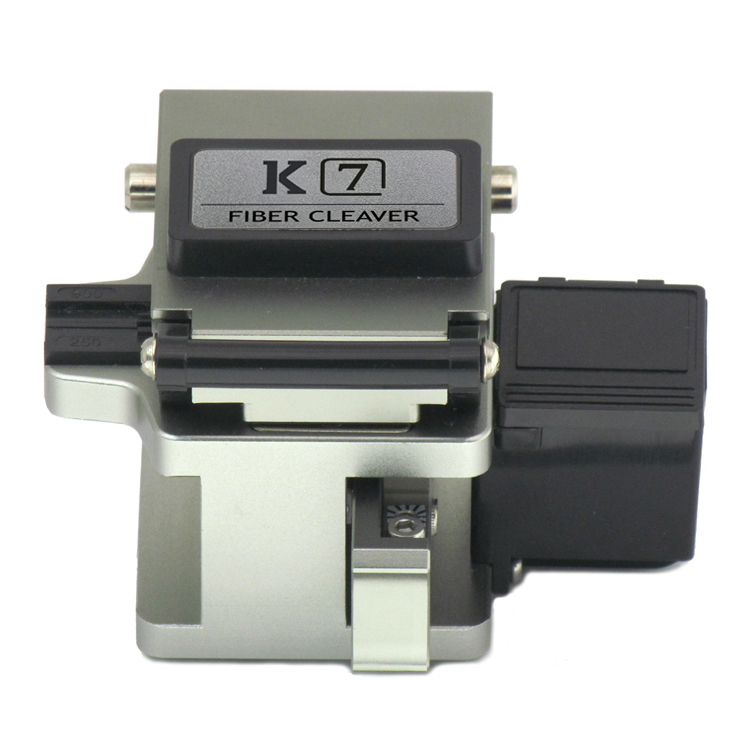

Fibretool K7 ເຄື່ອງຕັດໄຟເບີທີ່ມີຄວາມແມ່ນຍໍາສູງ

SPECIFICATIONS

Type: Single fiber and ribbon fiber

Cladding Diameter: 125μm

Applicable Fiber Cable : Single Fiber :160μm to 900μm, 2mm~3mm and drop cable; Ribbon Fiber : 2 to 12 ribbon fiber cable

Cleaved Length: Single Fiber : 5mm~16mm; Ribbon (Multi) Fiber : 10mm~20mm

Typical Cleaved Angle: Less than 0.5 Degrees

Typical Blade Life Span: Total 48,000 fiber cleaves (1,000 fiber for 1 step * total 16 points * 3 heights)

Operation Steps: 2 Steps

Holder: Single: Universal holder / Ribbon: Replaceable holder

Size: 62 × 76 × 62mm (without fiber trash bin)

Weight: 385 grams

FEATURES AND BENEFITS:

● Compact Ergonomic Design, Light weight and user friendly shape

● Longer life blade (3 height settings х 16 rotating positions = 48,000 cleaves)

● Applicable up to 12-fiber ribbon cleaving

● 24 Position Rotatable and Replicable Blade

● Spare blade part number: FCP-20BL
