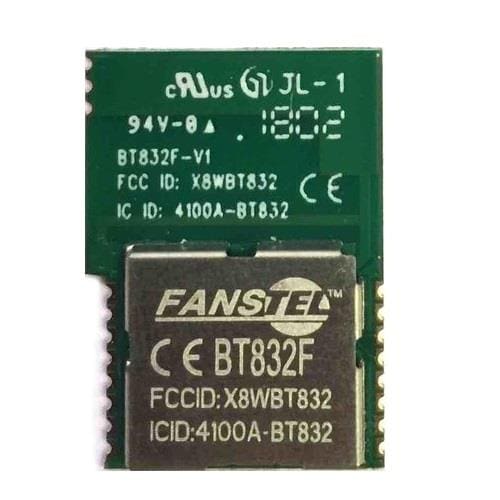

Fanstel BT832F ມູດູນ Bluetooth nRF52832 270 ແມັດ Bluetooth 5 Module

Core: ARM Cortex M4F

Range: 270 m

Width: 20.8 mm

Height: 1.9 mm

Length: 15 mm

Antenna: Integrated Trace

Protocol: BLE, Bluetooth 5.0

Data Rate: 1 Mb/s

Frequency: 2.4 GHz

Shielding: Shielded

Dimensions: 15 mm x 20.8 mm x 1.9 mm

Memory Size: 64 kB, 512 kB

Sensitivity: - 96 dBm

Unit Weight: 5.058 g

Output Power: 4 dBm

Interface Type: I2C, SPI, UART

Mounting Style: SMD/SMT

Moisture Sensitive: Yes

Receiver Sensitivity: - 96 dBm

Supply Voltage - Max: 3.6 V

Supply Voltage - Min: 1.7 V

Operating Supply Voltage: 1.7 V to 3.6 V

Supply Current Receiving: 5.4 mA

Supply Current Transmitting: 7.5 mA

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C

Protocol - Bluetooth, BLE - 802.15.1: Bluetooth, BLE
