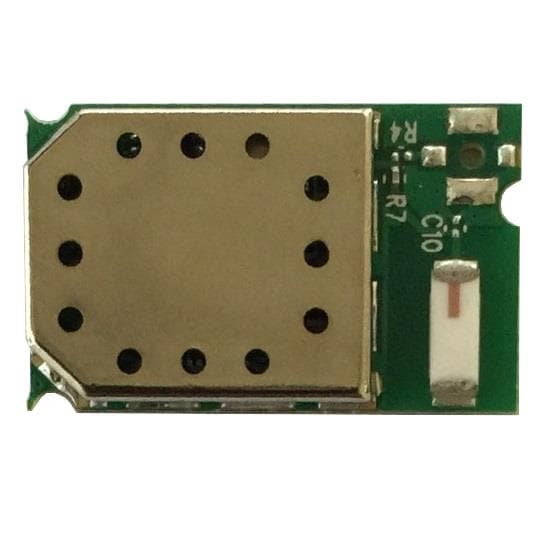

Fanstel BT600E ມູດູນ Bluetooth Bluetooth Module

Core: ARM Cortex M0

Range: 50 m

Width: 12 mm

Height: 2 mm

Length: 20 mm

Antenna: External

Protocol: BLE, Bluetooth 4.0

Data Rate: 1 Mb/s

Frequency: 2.44 GHz

Shielding: Shielded

Dimensions: 20 mm x 12 mm x 2 mm

Memory Size: 16 kB, 128 kB

Sensitivity: - 91 dBm

Unit Weight: 6.163 g

Output Power: 0 dBm

Interface Type: I2C, SPI, UART

Mounting Style: SMD/SMT

Frequency Range: 2.402 GHz to 2.48 GHz

Moisture Sensitive: Yes

Receiver Sensitivity: - 91 dBm

Supply Voltage - Max: 3.6 V

Supply Voltage - Min: 1.8 V

Operating Supply Voltage: 1.8 V to 3.6 V

Supply Current Receiving: 13 mA

Supply Current Transmitting: 10.5 mA

Maximum Operating Temperature: + 75 C

Minimum Operating Temperature: - 25 C

Protocol - Bluetooth, BLE - 802.15.1: Bluetooth, BLE
